Same model may have multiple batches, images only for reference.

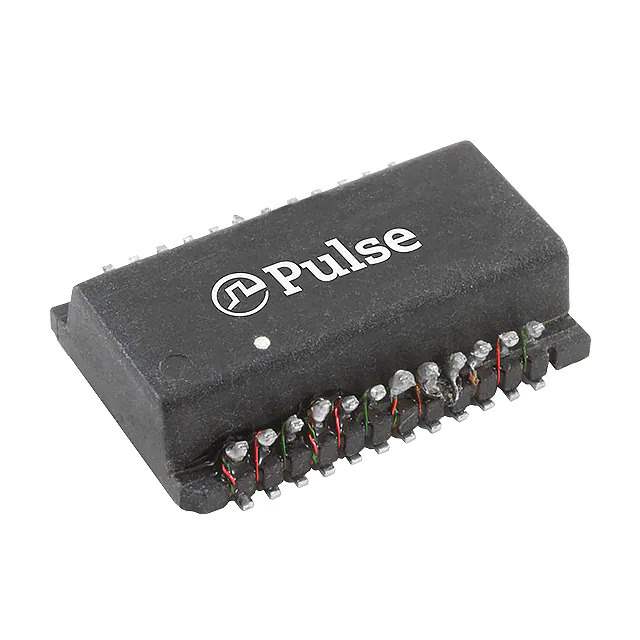

HX5084FNLT Real Image
Same model may have multiple batches, images only for reference.

HX5084FNLT

Part No HX5084FNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description MOD MAGNETIC 1PORT 1000BASE-T / Pulse Transformer Surface Mount
Datasheet
HX5084FNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Size / Dimension 0.600" L x 0.385" W (15.24mm x 9.78mm)
Height - Seated (Max) 0.163" (4.14mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 700 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 874069-HX5084FNLT
Ultra Librarian 3D Model Ultra Librarian HX5084FNLT CAD Model

Description

The 874069-HX5084FNLT is a pulse transformer suitable for various applications.

  • Size: 0.600" L x 0.385" W (15.24mm x 9.78mm)
  • Height: 0.163" (4.14mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Standard Package Quantity: 700 pcs
  • Manufacturer: Pulse
