Same model may have multiple batches, images only for reference.

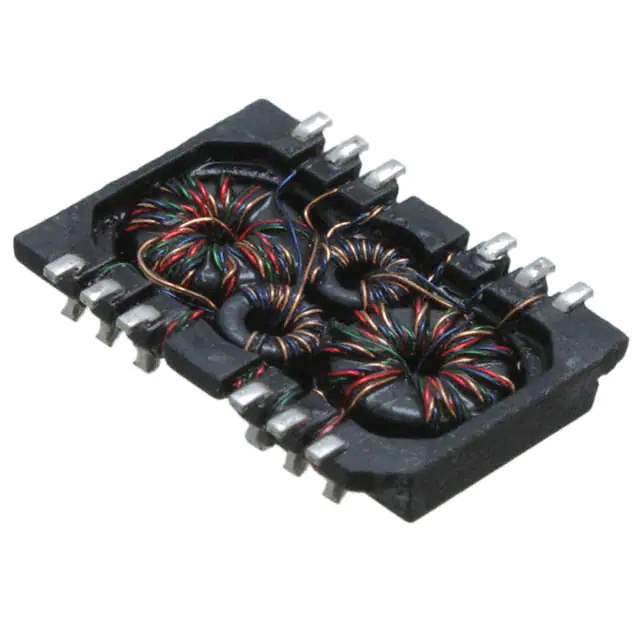

HX0068ANL Real Image
Same model may have multiple batches, images only for reference.

HX0068ANL

Part No HX0068ANL
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE XFMR 1:1 100D SIN SMD / Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Datasheet
HX0068ANL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.347" W (12.70mm x 8.81mm)
Height - Seated (Max) 0.082" (2.08mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.016 oz (0.454 g)
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 874064-HX0068ANL
Ultra Librarian 3D Model Ultra Librarian HX0068ANL CAD Model

Description

The 874064-HX0068ANL is a pulse transformer used in transformers.

  • Size: 0.500" L x 0.347" W (12.70mm x 8.81mm)
  • Height: 0.082" (2.08mm) Seated
  • Type: Isolation and Data Interface (Encapsulated)
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Package: Tube
  • Product Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
