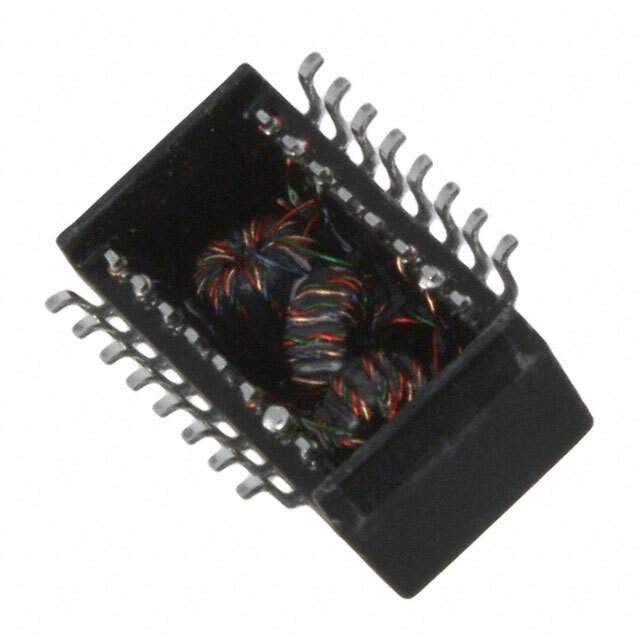

HX2019NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.04 oz (1.14g)
Win Source Part Number 091305-HX2019NL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HX2019NL CAD Model

Description

The Pulse Electronics Corporation 091305-HX2019NL transformer is a high-quality isolation and data interface component that is encapsulated for added durability. With a height of 0.245 inches and a weight of 0.04 ounces, this SMD (SMT) mounted transformer is perfect for a wide range of electronic applications. The HX2019NL transformer is a common-used part that is known for its reliability and high performance. This transformer is currently in limited supply and has a high popularity rating of 57 percent in the open market.
