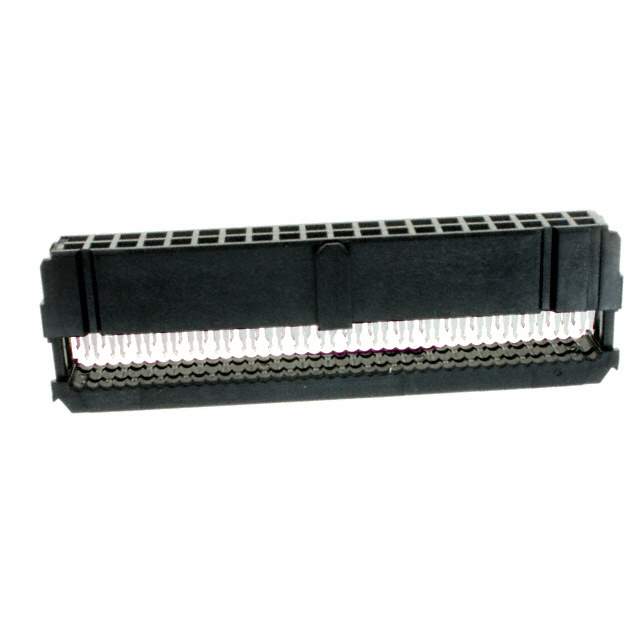

1658622-9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMP-Latch
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 40
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 26-28 AWG
Features Feed Through, Polarizing Key
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness 30μin (0.76μm)
Color Black
Win Source Part Number 760542-1658622-9
Popularity Medium
Supply and Demand Status Balance
Family Name 1658622
Introduction Date September 29, 2009
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1658622-9 CAD Model

Description

The TE Connectivity AMP Connectors 760542-1658622-9 is a 40-position female socket connector that features a feed-through design and a polarizing key.

  • Positions: 40
  • Color: Black
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold or Gold-Palladium
  • Contact Finish Thickness: 30μin (0.76μm)
  • Wire Gauge: 26-28 AWG
  • Applications: Ribbon Cable
  • Mounting Type: Free Hanging (In-Line)
  • Series: AMP-Latch
  • Popularity: Medium
  • Supply and Demand Status: Balanced
