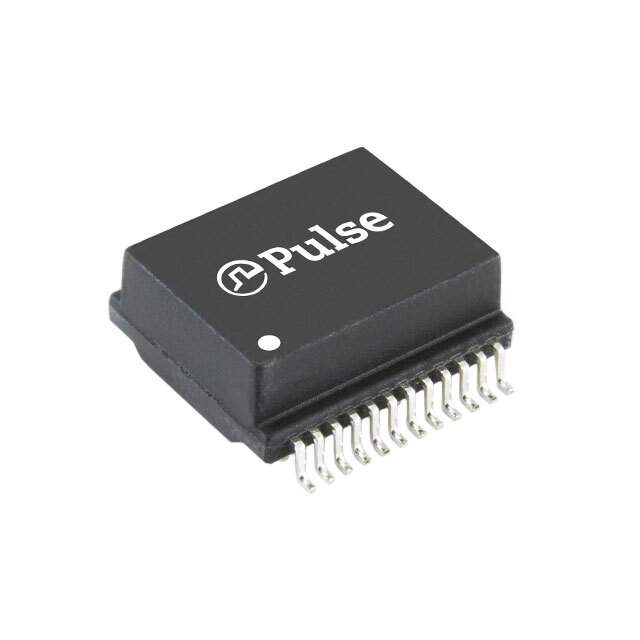

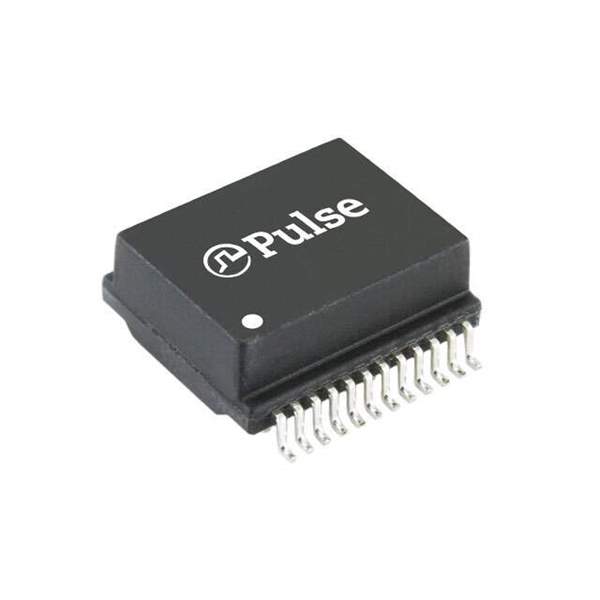

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Manufacturer Pulse Electronics
Packaging Reel - TR
Transformer Type HDBase-T
Inductance 100µH
Mounting Surface Mount
Size / Dimension 0.539" L x 0.480" W (13.70mm x 12.20mm)
Height - Seated (Max) 0.235" (5.97mm)
Temperature Range - Operating 0°C ~ 70°C
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 1840-1065-6-ND,553-HD8008NLTDKR,1840-1065-2,553-HD8008NLTTR,1840-1065-1,1840-1065-1-ND,1840-1065-2-ND,1840-1065-6,HD8008NLT-ND,553-HD8008NLTCT
Standard Package 300
Win Source Part Number 1330280-HD8008NLT
Ultra Librarian 3D Model Ultra Librarian HD8008NLT CAD Model

Description

The Pulse Electronics HD8008NLT is a high-performance HDBase-T transformer that is designed for use in a variety of applications such as audio and video distribution, digital signage, and home automation.

  • Manufacturer: Pulse Electronics
  • Application: Audio and Video Distribution, Digital Signage, and Home Automation
