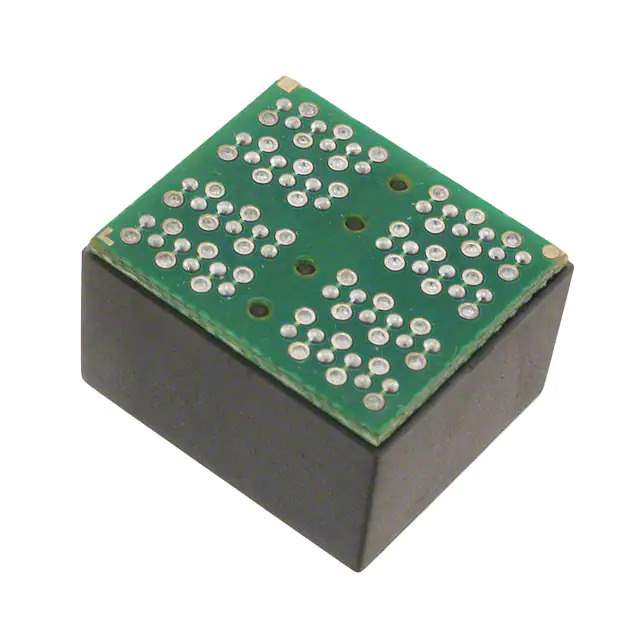

H5200NL Real Image
Same model may have multiple batches, images only for reference.

H5200NL

Part No H5200NL
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE XFORMR DUAL GIGABIT SMD / Pulse Transformer 1CT:1CT Surface Mount
Datasheet
H5200NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Active
Mounting Type Surface Mount
Size / Dimension 0.580" L x 0.680" W (14.73mm x 17.27mm)
Height - Seated (Max) 0.430" (10.92mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.18 oz (5.13 g)
Standard Package 84 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 873168-H5200NL
Ultra Librarian 3D Model Ultra Librarian H5200NL CAD Model

Description

The 873168-H5200NL is a pulse transformer designed for use in transformers - pulse transformers category.

  • Mounting Type: Surface Mount
  • Package: Tray
  • Size: 0.580" L x 0.680" W (14.73mm x 17.27mm)
  • Seated Height: 0.430" (10.92mm)
  • Product Status: Active
  • Standard Package: 84 pcs
  • Weight: 0.18 oz (5.13 g)
  • Operating Temperature: 0°C to 70°C
  • ECCN: EAR99
  • REACH: Not affected
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
