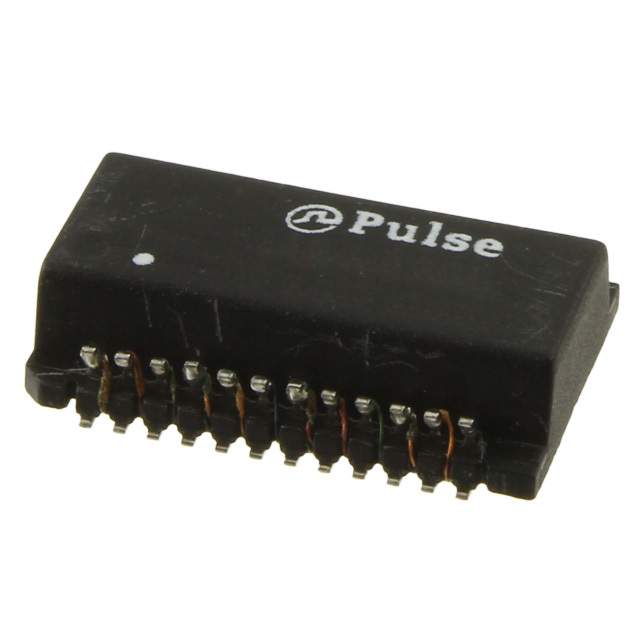

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.600" L x 0.385" W (15.24mm x 9.78mm)
Height - Seated (Max) 0.163" (4.14mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 700 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 139994-H5084FNLT
Ultra Librarian 3D Model Ultra Librarian H5084FNLT CAD Model

Description

The 139994-H5084FNLT is a surface mount pulse transformer designed for LAN 10/100/1000 Base-T applications. It has a compact size of 0.600" L x 0.385" W (15.24mm x 9.78mm) and a seated height of 0.163" (4.14mm). The transformer has an inductance of 350µH and operates in a temperature range of 0°C to 70°C. It comes in a tape & reel package and has a standard package quantity of 700 pcs. The 139994-H5084FNLT is an active product from Pulse and is unaffected by REACH regulations. It is widely used in LAN applications for high-speed data transmission.
