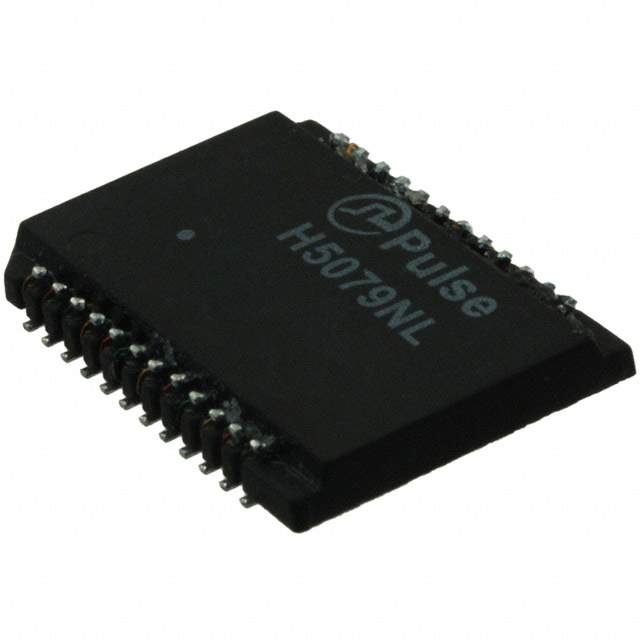

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Dimension 0.785" L x 0.551" W (19.94mm x 14.00mm)
Height - Seated (Max) 0.100" (2.54mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.04 oz (1.14 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names H5079NL-ND,553-1658-5
Standard Package 20
Win Source Part Number 1012256-H5079NL
Ultra Librarian 3D Model Ultra Librarian H5079NL CAD Model

Description

The 1012256-H5079NL is a pulse transformer designed for use in electronic circuits.

  • Product: 1012256-H5079NL
  • Mounting Type: Surface mount
  • Height: 0.100 inches
  • Category: Pulse transformer
  • Packaging: Tube
  • Transformer Type: Not specified
  • Inductance: Not specified
  • Weight: 0.04 ounces
  • Temperature Range: 0°C to 70°C
  • Length: 0.785 inches
  • Width: 0.551 inches
  • Manufacturer: Pulse Electronics Network
  • ECCN: EAR99
