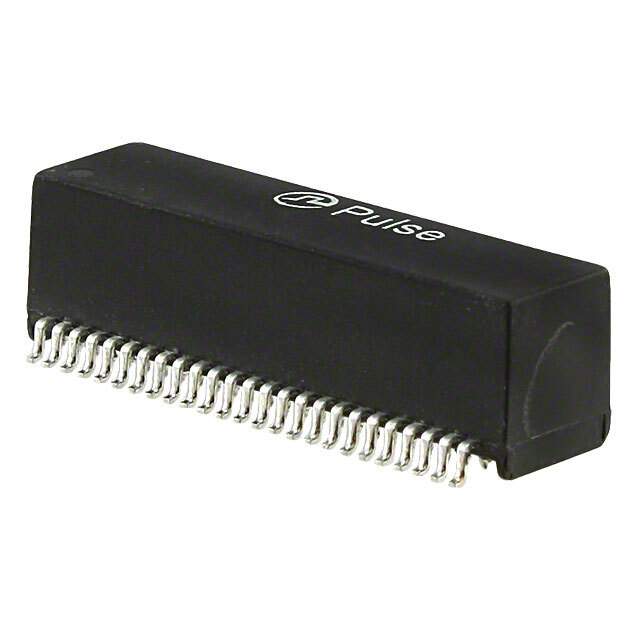

H5020NL Real Image
Same model may have multiple batches, images only for reference.

H5020NL

Part No H5020NL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER MODULE GIGABIT 2PORT
Datasheet
H5020NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.341" (8.66mm)
Weight 0.06 oz (1.71g)
Win Source Part Number 1042269-H5020NL
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Ultra Librarian 3D Model Ultra Librarian H5020NL CAD Model

Description

The Pulse Electronics Corporation transformer, with part number 1042269-H5020NL, is an isolation and data interface (encapsulated) transformer with a maximum seated height of 0.341" (8.66mm).

  • Packaging: tube/rail
  • Mounting: SMD (SMT)
  • Weight: 0.06 oz (1.71g)
  • Category: transformers
  • Status: active
  • Popularity: medium
  • Used In: industrial, consumer electronics, portable devices, and power management applications
