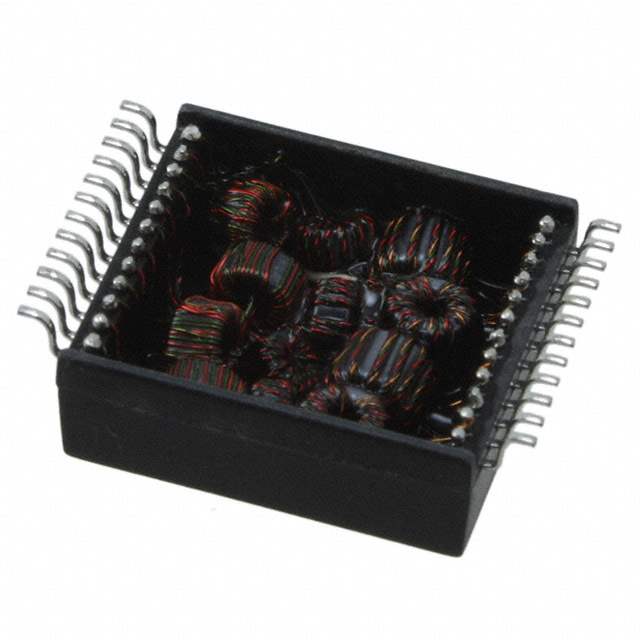

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.235" (5.97mm)
Weight 0.06 oz (1.71g)
Win Source Part Number 016776-H5008NL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H5008NL CAD Model

Description

The Pulse Electronics Corporation 016776-H5008NL is a high-popularity electronic component that is commonly used in various electronic devices. It is an isolation and data interface transformer that is encapsulated and has a height of 0.235 inches. The component is mounted using SMD (SMT) and has a weight of 0.06 oz. It is packaged in a tube/rail and has a Win Source Part Number of 016776.
