Same model may have multiple batches, images only for reference.

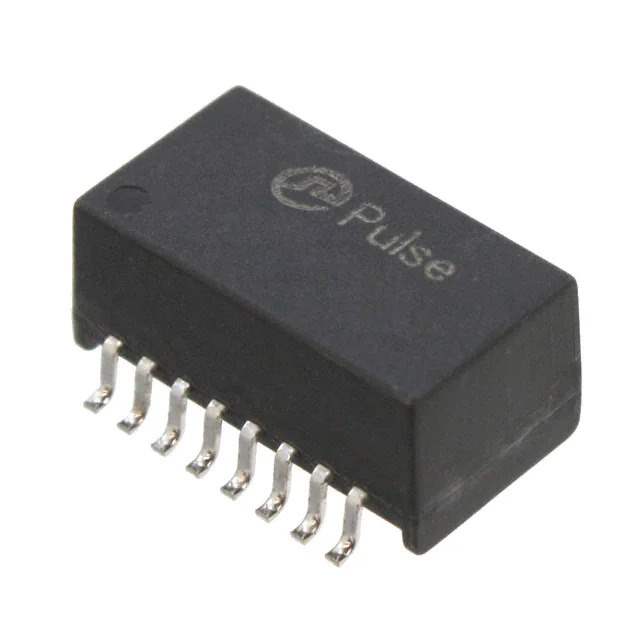

H2019FNL Real Image
Same model may have multiple batches, images only for reference.

H2019FNL

Part No H2019FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet
H2019FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Active
Transformer Type LAN 10G Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max) 0.236" (5.99mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 852397-H2019FNL
Ultra Librarian 3D Model Ultra Librarian H2019FNL CAD Model

Description

The 852397-H2019FNL is a pulse transformer designed for LAN 10G Base-T applications.

  • Size: 0.500" L x 0.358" W (12.70mm x 9.09mm)
  • Transformer Type: LAN 10G Base-T
  • Inductance: 350µH
  • Seated Height: 0.236" (5.99mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C to 70°C
  • ECCN: EAR99
  • Standard Package Quantity: 40 pieces
  • Product Status: Active
