Same model may have multiple batches, images only for reference.

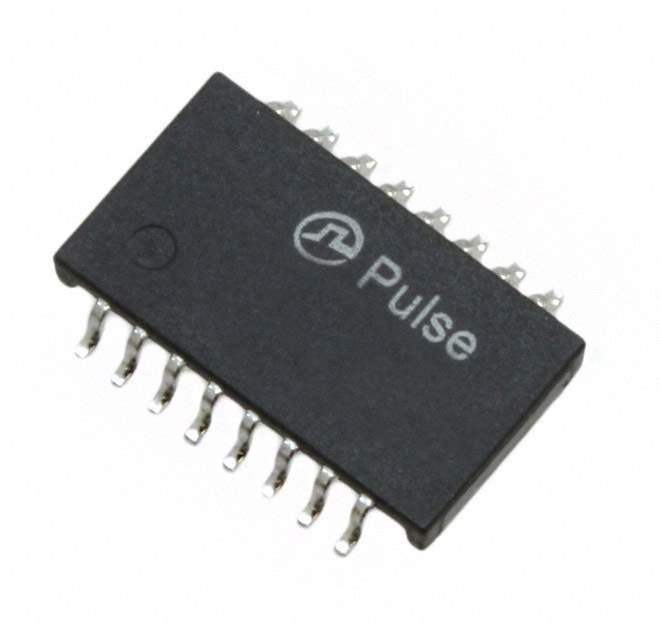

H0013NL Real Image
Same model may have multiple batches, images only for reference.

H0013NL

Part No H0013NL
Manufacturer Pulse
Catalog Pulse Transformers
Description 10/100 PC Card LAN Magnetic Modules | MODULE MAGNETIC LAN 1:1 10/100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Maximum) 0.078" (1.98mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.01 oz (0.28g)
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1178091-H0013NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H0013NL CAD Model

Description

The Pulse Electronics Network transformer is an isolation and data interface transformer, encapsulated for durability. Pulse Electronics Network manufactures it.

  • Operating Temperature: 0°C to 70°C
  • Weight: 0.01 oz (0.28g)
  • Transformer Type: SMD
  • Mounting Style: Through-Hole
  • Packaging: Tube
  • Height: 0.078" (1.98mm)
  • Manufacturer's Homepage: www.pulseeng.com
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 40
  • MSL Level: 1 (Unlimited)
  • Dimensions: 0.500" L x 0.280" W (12.70mm x 7.11mm)
