Same model may have multiple batches, images only for reference.

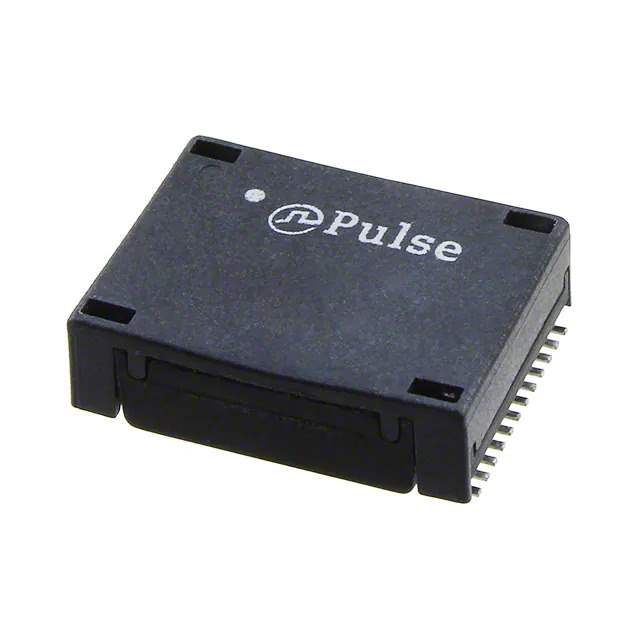

H5008FNL Real Image
Same model may have multiple batches, images only for reference.

H5008FNL

Part No H5008FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350μH LAN 10/100/1000 Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
H5008FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T, Power over Ethernet (PoE)
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.743" L x 0.538" W (18.87mm x 13.67mm)
Height - Seated (Max) 0.231" (5.87mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 873163-H5008FNL
Ultra Librarian 3D Model Ultra Librarian H5008FNL CAD Model

Description

The pulse transformer, part number 873163-H5008FNL, is a versatile electronic component used in various applications.

  • Application: LAN 10/100/1000 Base-T and Power over Ethernet (PoE) systems
  • Size: 0.743" L x 0.538" W (18.87mm x 13.67mm)
  • Height: 0.231" (5.87mm) when seated
  • Mounting Type: Surface Mountable
  • Operating Temperature: 0°C to 70°C
  • Manufacturer: Pulse
  • Product Status: Active
  • Standard Package: 35 pieces
