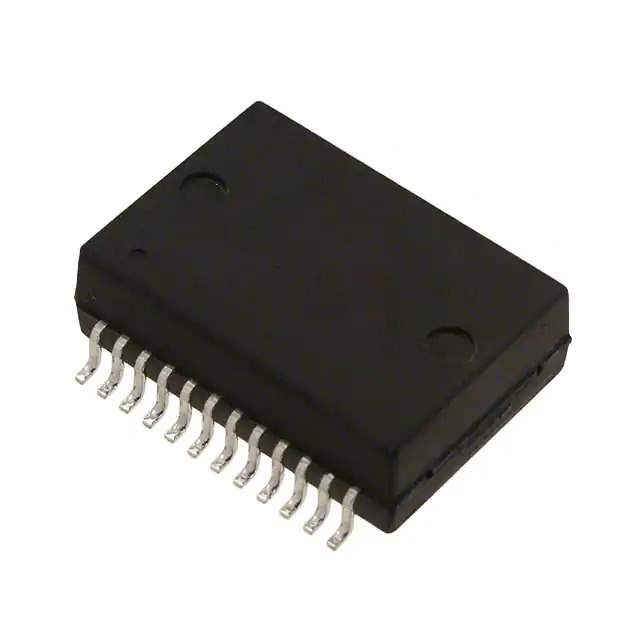

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Obsolete
Transformer Type LAN 1000 Base-T
Mounting Type Surface Mount
Size / Dimension 0.690" L x 0.480" W (17.53mm x 12.20mm)
Height - Seated (Max) 0.235" (5.97mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.06 oz (1.71 g)
Standard Package 25 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 139975-H5004
Ultra Librarian 3D Model Ultra Librarian H5004 CAD Model

Description

The 139975-H5004 is an obsolete pulse transformer designed for electronic applications. It comes in a tray package and has a size dimension of 0.690" L x 0.480" W (17.53mm x 12.20mm). This transformer is specifically designed for LAN 1000 Base-T applications. The height when seated is 0.235" (5.97mm) and it is surface mountable. With a weight of 0.06 oz (1.71 g), it is lightweight and compact. The operating temperature range is 0°C to 70°C, making it suitable for various environments. With an ECCN status of EAR99, it is not subject to export control.
