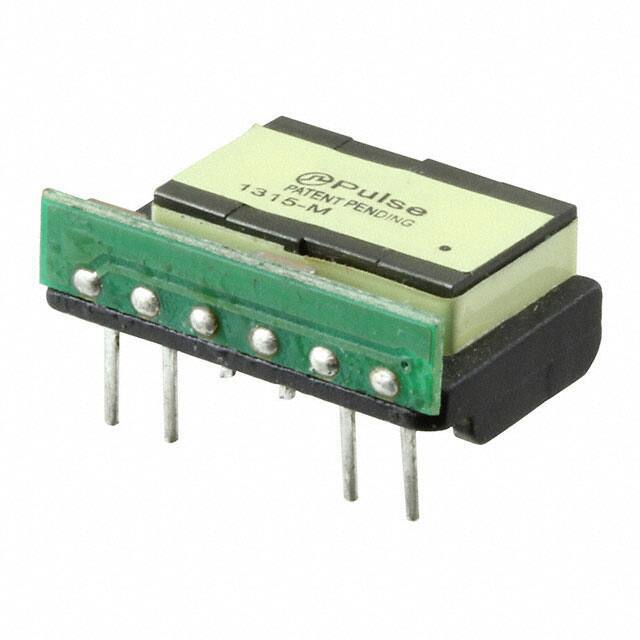

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Series SmartER Splitter™
Package Tray
Product Status Obsolete
Transformer Type ADSL, VDSL
Mounting Type Through Hole
Size / Dimension 0.827" L x 0.531" W (21.00mm x 13.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 60 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.69.0000
Win Source Part Number 863330-B8887NL
Ultra Librarian 3D Model Ultra Librarian B8887NL CAD Model

Description

The 863330-B8887NL is a pulse transformer designed for use in transformers - pulse transformers category.

  • Design: SmartER Splitter™ transformer
  • Mounting Type: Through hole
  • Package: Tray
  • Size: 0.827" L x 0.531" W (21.00mm x 13.50mm)
  • Seated Height: 0.315" (8.00mm)
  • Product Status: Obsolete
  • Standard Package: 60 pcs
  • REACH Regulations: Not affected
  • HTSUS Code: 8517.69.0000
  • Manufacturer: Pulse
