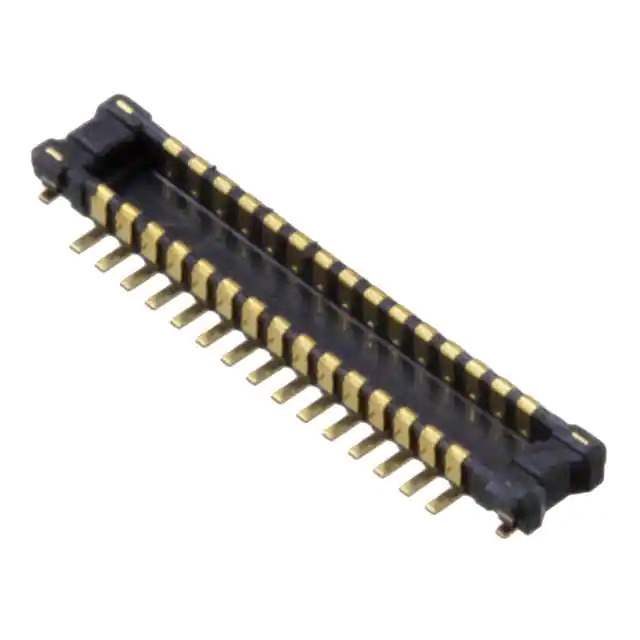

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4S
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Base Product Number AXE630
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 567348-AXE630124
Ultra Librarian 3D Model Ultra Librarian AXE630124 CAD Model

Description

The AXE630124 is a rectangular connector array designed for board-to-board connections.

  • Series: A4S
  • Positions: 30
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Connector Type: Header with Outer Shroud Contacts
  • Contact Finish: Gold
  • Mated Stacking Height: 0.8mm
  • Height Above Board: 0.026" (0.65mm)
  • Mounting Type: Surface Mount
  • Manufacturer: Panasonic
  • Status: Active
  • Package: Tape & Reel
  • Standard Package Quantity: 5,000 pcs
