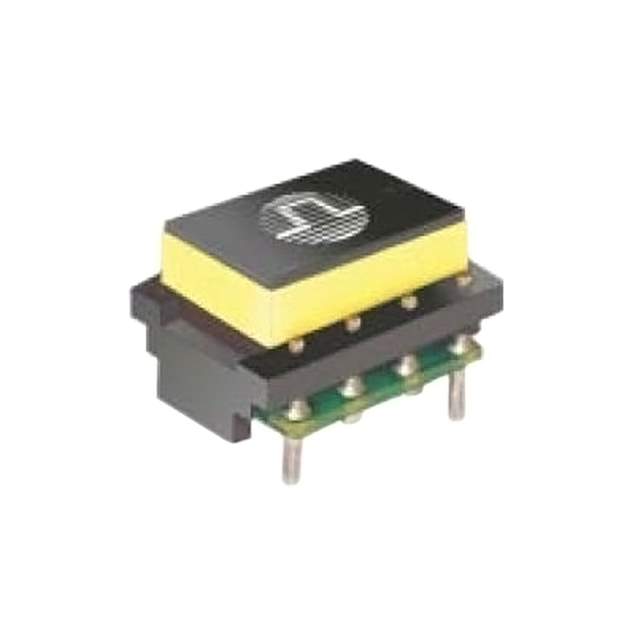

B8849NL Real Image
Same model may have multiple batches, images only for reference.

B8849NL

Part No B8849NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description PULSE XFMR ADSL ETSI-A / ADSL, VDSL Pulse Transformer Through Hole
Datasheet
B8849NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Series SmartER Splitter™
Package Tray
Transformer Type ADSL, VDSL
Mounting Type Through Hole
Dimension 0.512" L x 0.681" W (13.00mm x 17.30mm)
Height - Seated (Max) 0.453" (11.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names B8849NL-ND,-B8849NL,553-2642
Standard Package 80
Win Source Part Number 1048032-B8849NL
Ultra Librarian 3D Model Ultra Librarian B8849NL CAD Model

Description

The Pulse B8849NL SmartER Splitter transformer is a through-hole mounted transformer that is part of the ADSL and VDSL transformer type.

  • Height: 0.453"
  • Dimensions: 0.512" L x 0.681" W
  • Package: Tray
  • ECCN: EAR99
  • MSL Level: 1
