Same model may have multiple batches, images only for reference.

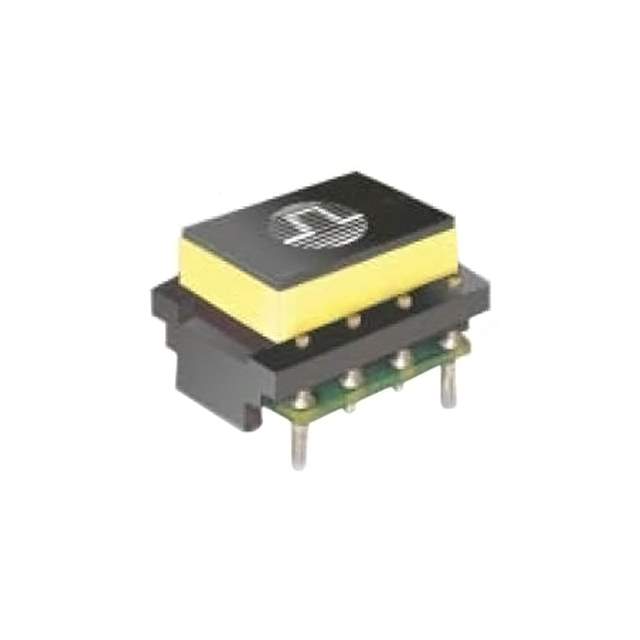

B8841NL Real Image
Same model may have multiple batches, images only for reference.

B8841NL

Part No B8841NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description PULSE XFMR ETSI 600 OHM / ADSL, VDSL Pulse Transformer Through Hole
Datasheet
B8841NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Series SmartER Splitter™
Package Tray
Transformer Type ADSL, VDSL
Mounting Type Through Hole
Dimension 0.512" L x 0.681" W (13.00mm x 17.30mm)
Height - Seated (Max) 0.453" (11.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-2638,-B8841NL,B8841NL-ND
Standard Package 80
Win Source Part Number 1048031-B8841NL
Ultra Librarian 3D Model Ultra Librarian B8841NL CAD Model

Description

The Pulse B8841NL SmartER Splitter transformer is a through-hole mounted transformer that is part of the ADSL and VDSL transformer type.

  • Height: 0.453"
  • Dimensions: 0.512" L x 0.681" W
  • Package: Tray
  • ECCN: EAR99
  • MSL Level: 1
