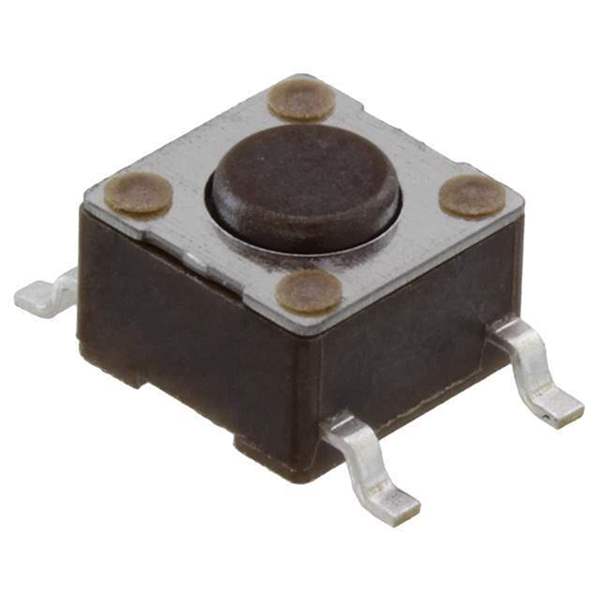

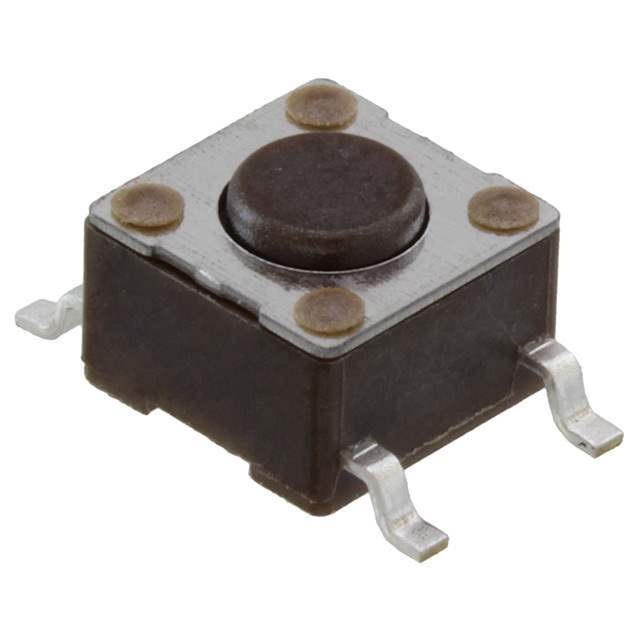

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1309785-FSM2JSMLTR
Manufacturer TE Connectivity ALCOSWITCH Switches
Category Switches > Tactile Switches
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Ultra Librarian 3D Model Ultra Librarian FSM2JSMLTR CAD Model

Description

Tactile Switch SPST-NO Top Actuated Surface Mount
