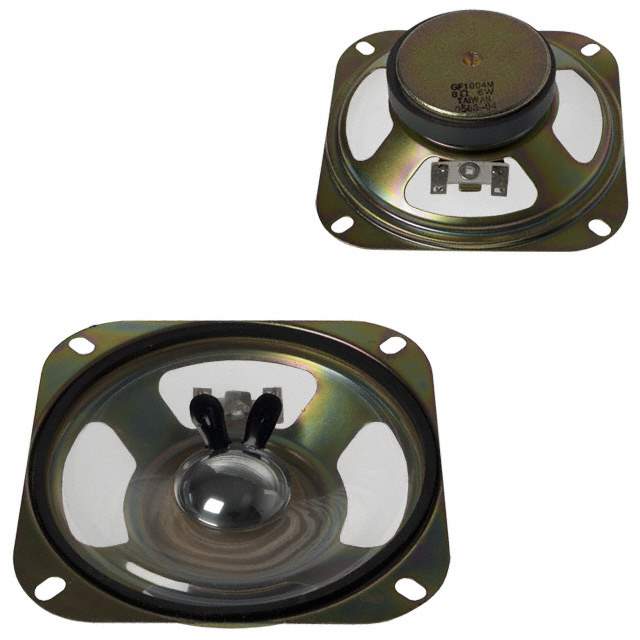

GF1004M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Packaging Bulk
Status Active
Type Magnetic
Frequency Range 230Hz to 14kHz
Impedance 8 Ohm
Sound Pressure Level (SPL) 93dB
Power - Rated 6W
Maximum Power Dissipation 10W
Port Location Top
Shape Round, Square Frame
Material - Cone PET
Material - Magnet Ferrite
Termination Solder Eyelet(s)
Height - Seated (Max) 1.437" (36.50mm)
Win Source Part Number 1000745-GF1004M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GF1004M CAD Model

Description

The CUI Inc. 1000745-GF1004M is a magnetic speaker designed for use in audio products.

  • Frame: round or square frame
  • Port Location: top
  • Rated Power: 6W
  • Impedance: 8 Ohm
  • Frequency Range: 230Hz to 14kHz
  • Sound Pressure Level (SPL): 93dB
  • Maximum Power Dissipation: 10W
  • Cone Material: PET
  • Magnet Material: ferrite
  • Seated Height: 1.437" (36.50mm)
  • Supply and Demand Status: balanced
