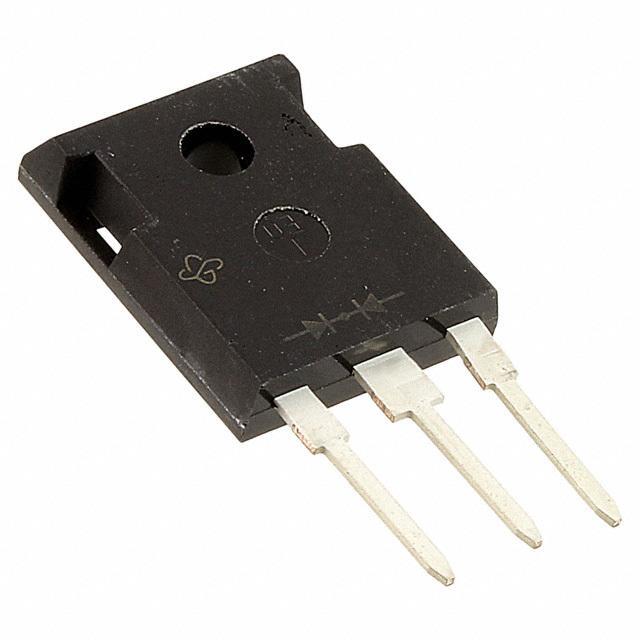

Same model may have multiple batches, images only for reference.
V60100PW-M3/4W Vishay
Same model may have multiple batches, images only for reference.

V60100PW-M3/4W

Part No V60100PW-M3/4W
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO3PW / Rectifier Diode Schottky 100V 60A 3-Pin(3+Tab) TO-3PW Tube
Datasheet
V60100PW-M3/4W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Series TMBS
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Maximum) @ If 860mV @ 30A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 100V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PW
Win Source Part Number 798993-V60100PW-M3/4W
Popularity Medium
Supply and Demand Status Limited
Quantity per package 750
Family Name V60100PW
Introduction Date April 28, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian V60100PW-M3/4W CAD Model

Description

The Vishay V60100PW-M3/4W is a Schottky diode designed for use in fast recovery applications.

  • Maximum Forward Voltage: 860mV @ 30A
  • Maximum Reverse Voltage: 100V
  • Current Rating: 30A
  • Leakage Current: 1mA @ 100V
  • Package / Case: TO-3P-3 full pack
  • Diode Configuration: Common Cathode
  • Series: TMBS
  • AEC-Q200 Compliant: Yes
  • Supply and Demand Status: Limited
  • Alternatives: MBR60100PT C0G, MBR60100PT C0, MBR60100PTHC0, MBR60100PT
