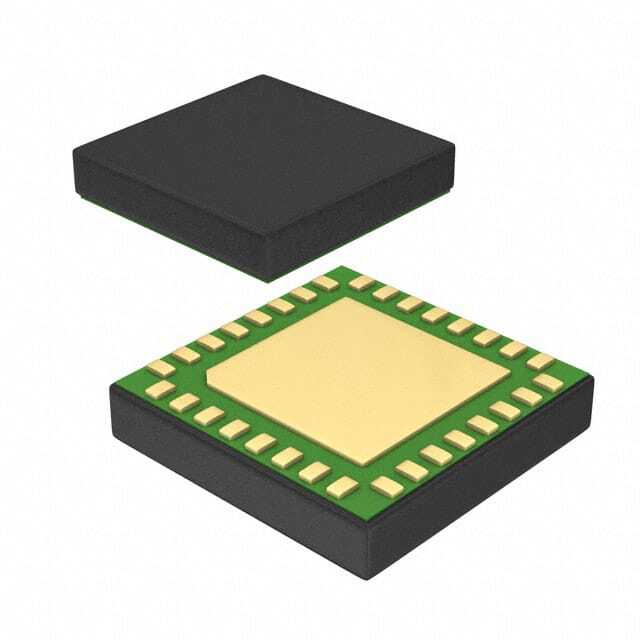

PE42540G-Z pSemi
Same model may have multiple batches, images only for reference.

PE42540G-Z

Part No PE42540G-Z
Manufacturer pSemi
Catalog RF Switches
Datasheet
PE42540G-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr pSemi
Series UltraCMOS®
Package Tape & Reel
Topology Absorptive
Circuit SP4T
Frequency Range 10Hz ~ 8GHz
Isolation 31dB
Insertion Loss 1.2dB
Test Frequency 8GHz
P1dB 33dBm
IIP3 58dBm
Impedance 50Ohm
Voltage - Supply 3.3V
Temperature Range - Operating -40°C ~ 85°C
Package / Case 32-TFQFN Exposed Pad
Supplier Device Package 32-LGA (5x5)
Base Product Number PE42540
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1316050-PE42540G-Z
Ultra Librarian 3D Model Ultra Librarian PE42540G-Z CAD Model

Description

The pSemi PE42540G-Z is a high-performance RF switch from the UltraCMOS series.

  • Circuit: SP4T
  • Topology: Absorptive
  • Insertion Loss: 1.2dB
  • Isolation: 31dB
  • Test Frequency: 8GHz
  • Frequency Range: 10Hz ~ 8GHz
  • RoHS Compliant: Yes
  • Win Source Part Number: 1316050-PE42540G-Z
