Analog Devices Inc.'s HMC641ALC4TR: A High-Performance RF Switch

The HMC641ALC4TR from Analog Devices Inc. is a state-of-the-art RF (Radio Frequency) switch that is designed to provide exceptional performance in a wide range of RF applications. This product is part of Analog Devices' Hittite Microwave product line, which is known for its high-quality microwave and millimeter-wave components.

Constructed with gallium arsenide (GaAs) MESFET technology, the HMC641ALC4TR offers a high isolation and low insertion loss across a broad frequency range, making it an ideal choice for demanding RF applications. The switch operates over a DC to 20 GHz frequency range, ensuring versatility and compatibility with a variety of systems.

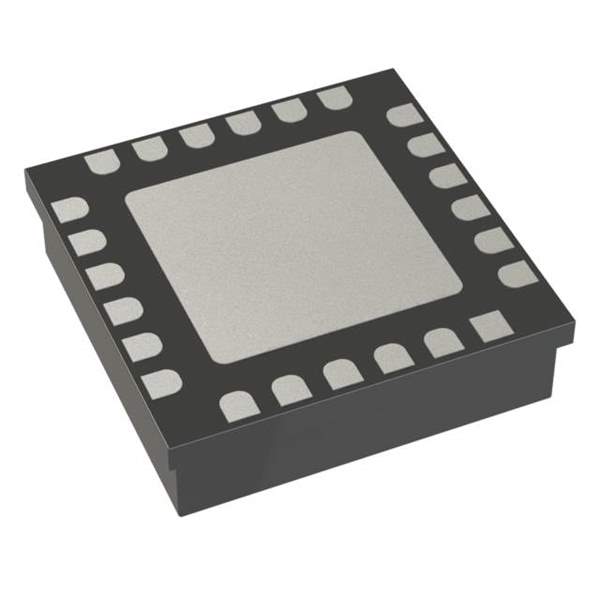

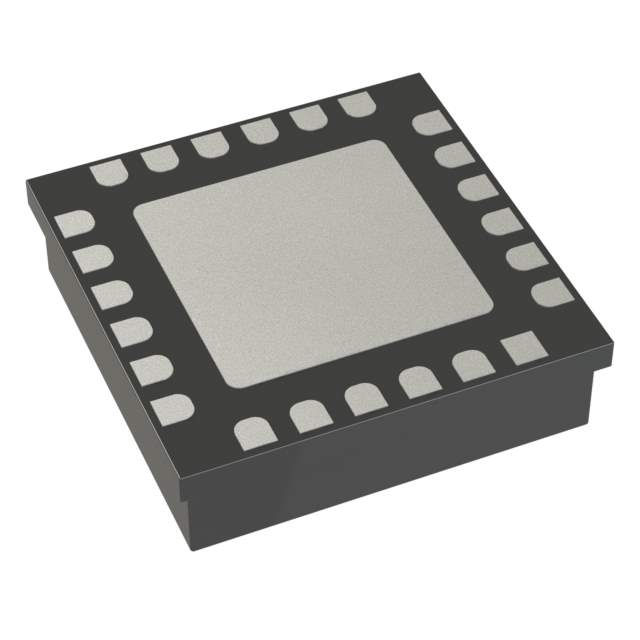

The HMC641ALC4TR is housed in a compact 4x4 mm QFN (Quad Flat No-leads) package, which allows for easy integration into space-constrained applications. Despite its small size, this RF switch does not compromise on performance, providing excellent RF characteristics that are essential for high-frequency circuits.

Key features of the HMC641ALC4TR include:

• Broadband frequency range: DC to 20 GHz
• Low insertion loss: 1.8 dB typical at 18 GHz
• High isolation: 45 dB typical at 18 GHz
• Fast switching speed: 12 ns typical
• Single positive control voltage: 0/+5V
• Non-reflective design
• RoHS compliant and 260°C reflow compatible

These features make the HMC641ALC4TR an excellent choice for a variety of applications, including:

• Test equipment and sensors
• Military and space
• Telecommunications infrastructure
• Fiber optic systems
• Electronic warfare and ECM (Electronic Countermeasures)

With its robust performance and versatility, the HMC641ALC4TR is well-suited for engineers and designers looking for a reliable RF switch that can meet the stringent requirements of high-frequency electronic systems. Analog Devices Inc. ensures that this product is manufactured to the highest standards, providing both quality and reliability for their customers.

For more detailed specifications, application support, and ordering information, customers are encouraged to visit the Analog Devices Inc. website or contact their local sales representative.
