The HMC547ALC3 from Analog Devices Inc. is a high-performance, single-pole, six-throw (SP6T) non-reflective switch designed for microwave and millimeter-wave applications. This device is a part of the Hittite Microwave product family, known for its exceptional quality and performance in RF and microwave components.

Key Features:

• Frequency Range: The HMC547ALC3 operates over a broad frequency range from DC to 40 GHz, making it versatile for a wide array of applications including electronic warfare, test equipment, and satellite communications.
• Insertion Loss: It features low insertion loss, typically 2.6 dB at 26 GHz, ensuring minimal signal attenuation when switching between paths.
• Isolation: High isolation between channels, typically 45 dB at 26 GHz, helps to prevent signal leakage and maintains signal integrity across the different switch states.
• Switching Speed: The device boasts a fast switching speed of 25 ns, which is critical for time-sensitive applications where rapid signal routing is required.
• Control Voltage: With a +5V control voltage, the HMC547ALC3 is compatible with standard logic levels, simplifying the integration into various systems.

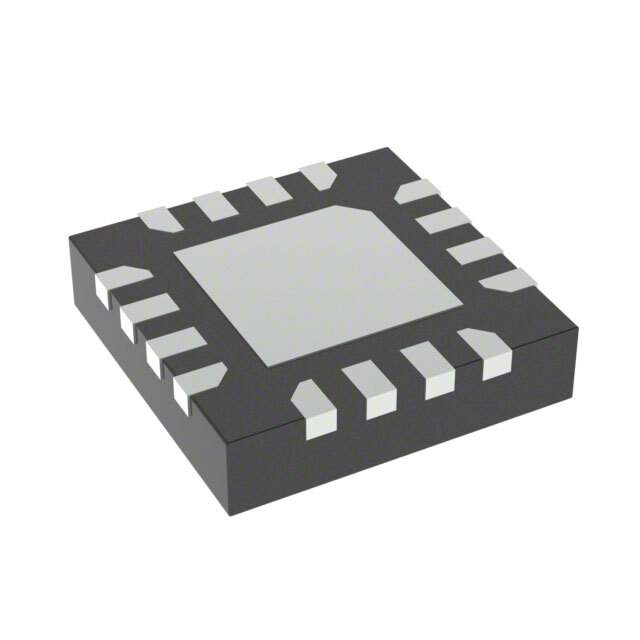

• Package: It comes in a compact, 3x3 mm, ceramic QFN package that is suitable for surface-mount technology (SMT), allowing for efficient use of board space in dense circuit designs.

Applications:

The HMC547ALC3 is ideal for use in:

• Microwave Radio & VSAT
• Military & Space
• Fiber Optics & Broadband Telecom
• Test Instrumentation
• Electronic Warfare

Conclusion:

The HMC547ALC3 from Analog Devices Inc. stands out as a reliable and high-performing SP6T non-reflective switch suitable for a variety of demanding RF and microwave applications. Its broad frequency range, low insertion loss, high isolation, and fast switching speed make it a versatile choice for designers seeking to optimize their RF signal routing with minimal performance trade-offs.
