The ADRF5047BCCZN from Analog Devices Inc. is a state-of-the-art single-pole, four-throw (SP4T) RF switch designed for a variety of RF applications. This high-performance component is crafted to deliver exceptional reliability and performance, making it an ideal choice for demanding environments where precision and durability are paramount.

Key Features

• Frequency Range: The switch operates over a broad frequency range from 9 kHz to 44 GHz, providing versatility for use in multiple RF applications, including microwave radios, test equipment, and satellite communications.
• Low Insertion Loss: With an insertion loss of typically 1.7 dB at 30 GHz, the ADRF5047BCCZN ensures minimal signal degradation, maintaining the integrity of the RF path.
• High Isolation: The device offers excellent isolation performance, typically 38 dB at 30 GHz, which helps to prevent signal leakage between the RF ports, ensuring clean signal switching.
• Non-Reflective Design: The SP4T switch is non-reflective, which is critical for applications where signal reflection can cause interference or degrade system performance.
• High Linearity: Featuring a high input P1dB of 27 dBm at 30 GHz, this switch maintains signal fidelity even at high power levels, making it suitable for both receive and transmit paths.

Product Specifications

• Part Number: ADRF5047BCCZN
• Manufacturer: Analog Devices Inc.

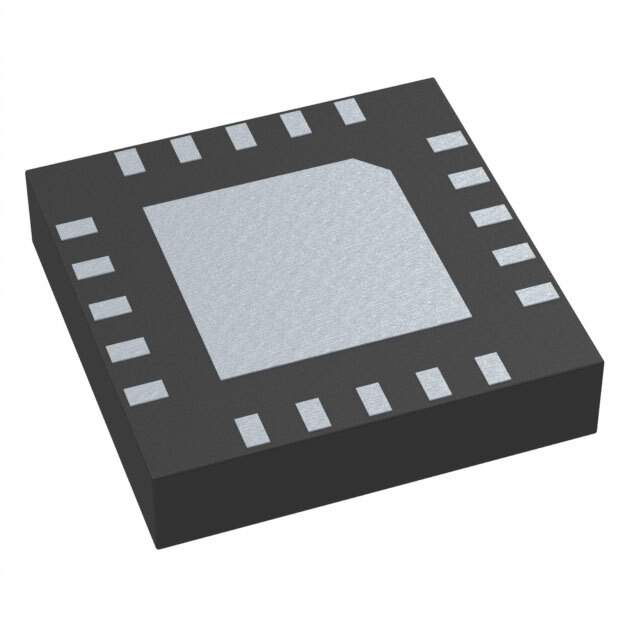

• Package: The device is housed in a compact, 4 mm × 4 mm, 24-lead LFCSP package, which is ideal for space-constrained applications.

Applications

The ADRF5047BCCZN is well-suited for a wide range of applications, including but not limited to:

• Wireless infrastructure (4G/5G)
• Test and measurement equipment
• Satellite communication systems
• Phased array antennas
• Electronic warfare and radar systems

With its robust design and impressive electrical characteristics, the ADRF5047BCCZN by Analog Devices Inc. represents a superior choice for designers seeking to enhance their RF signal routing with a reliable and high-performing switch.
