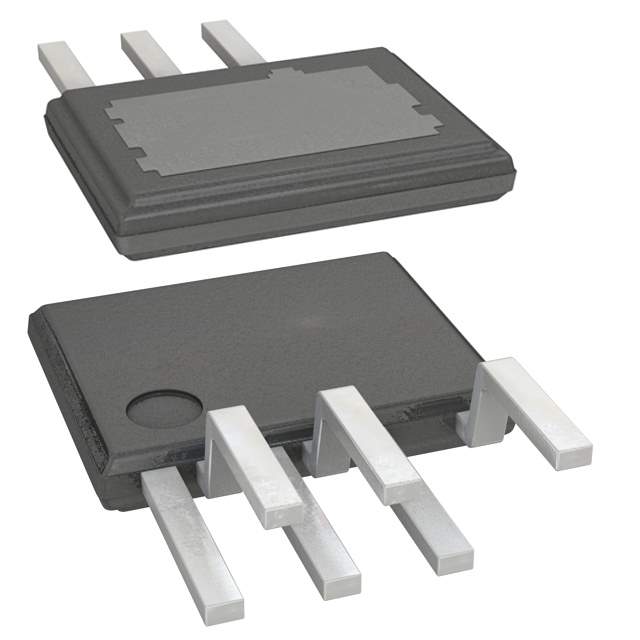

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Power Integrations
Packaging Tube
Type AC DC Offline Switcher
Topology Flyback
Internal Switch(s) Yes
Number of Outputs 1
Voltage - Supply (Min) 36V
Voltage - Supply (Maximum) 725V
Current - Output / Channel 4.9A
Frequency 66kHz
Dimming PWM
Applications Lighting
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 7-SSIP, 6 Leads, Exposed Pad, Formed Leads
Supplier Device Package eSIP-7C
Manufacturer Pack Quantity 48
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804969-LNK420EG
Ultra Librarian 3D Model Ultra Librarian LNK420EG CAD Model

Description

The Power Integrations LNK420EG is an AC-DC offline switcher that has a frequency of 66kHz and a current output of 4.9A.

  • Internal Switch: Yes
  • Topology: Flyback
  • Outputs: One
  • Dimming: PWM
  • Voltage Supply Range: 36V to 725V
  • Package: 7-SSIP, 6 leads, exposed pad, formed leads
  • Applications: Lighting
  • Operating Temperature Range: -40°C to 150°C
  • Packaging: Tube
  • Manufacturer Pack Quantity: 48
