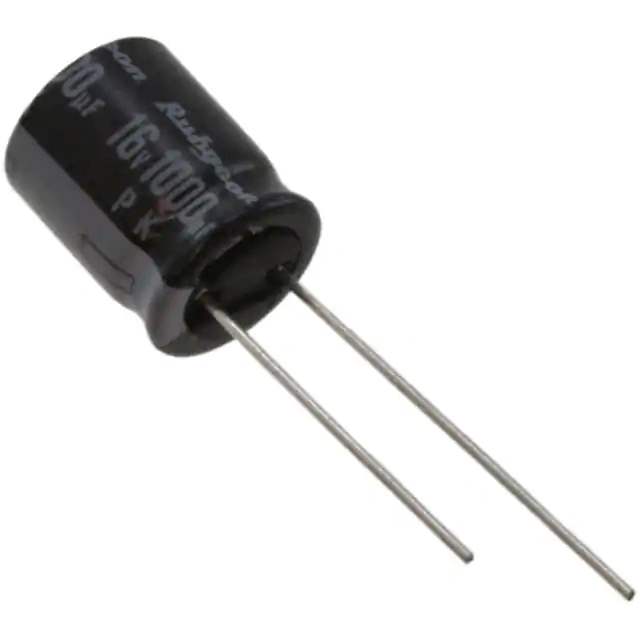

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PK
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 720 mA @ 120 Hz
Ripple Current @ High Frequency 864 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 854095-16PK1000MEFC10X12.5
Ultra Librarian 3D Model Ultra Librarian 16PK1000MEFC10X12.5 CAD Model

Description

The 854095-16PK1000MEFC10X12.5 is a bulk aluminum electrolytic capacitor from the PK series.

  • Capacitance: 1000 µF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Seated Height: 0.551" (14.00mm)
  • ESR: Not Specified
  • Surface Mount Land Size: Not Specified
  • Mounting Type: Through Hole
  • Package/Case: Radial, Can
  • Operating Temperature: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Polarization: Polar
  • Ripple Current (Low Frequency): 720 mA @ 120 Hz
  • Ripple Current (High Frequency): 864 mA @ 10 kHz
  • Manufacturer: Rubycon
  • Product Status: Active
