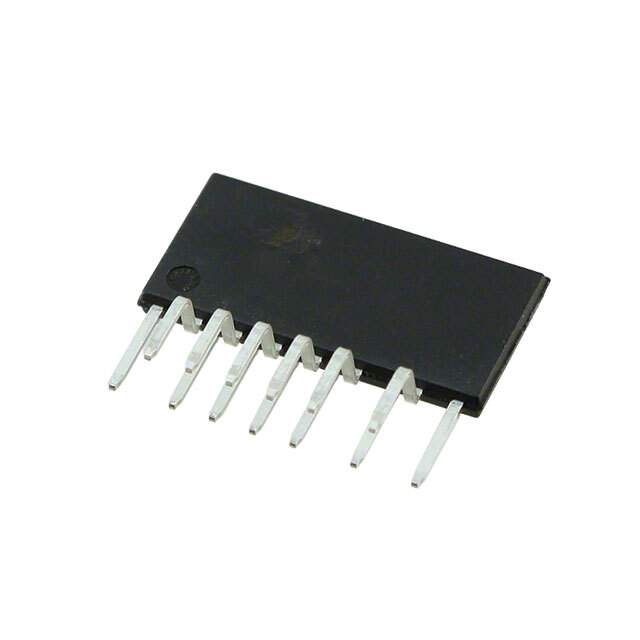

LCS701HG Real Image
Same model may have multiple batches, images only for reference.

LCS701HG

Part No LCS701HG
Manufacturer Power Integrations
Catalog PMIC - Full, Half - Bridge Drivers
Description IC LLC CTRL MFET 170W ESIP16C
Datasheet
LCS701HG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Applications General Purpose
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 1 Ohm
Current - Peak Output 7.7A
Supply Voltage - Operating 11.4 V to 15 V
Voltage - Load 11.4 V to 15 V
Temperature Range - Operating -40°C to 150°C (TJ)
Features Auto Restart, Slew Rate Controlled
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Through Hole
Case / Package 16-ESIP
Win Source Part Number 1051974-LCS701HG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LCS701HG CAD Model

Description

The LCS701HG is an integrated circuit designed for general purpose applications manufactured by Power Integrations.

  • Features: Auto Restart, Slew Rate Controlled, Fault Protection (Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO)
  • Voltage Load: 11.4 V to 15 V
  • Rds On (Typ): 1 Ohm
  • Load Type: Inductive
  • Current-Peak Output: 7.7A
  • Win Source Part Number: 1051974-LCS701HG
  • Category: Integrated Circuits
