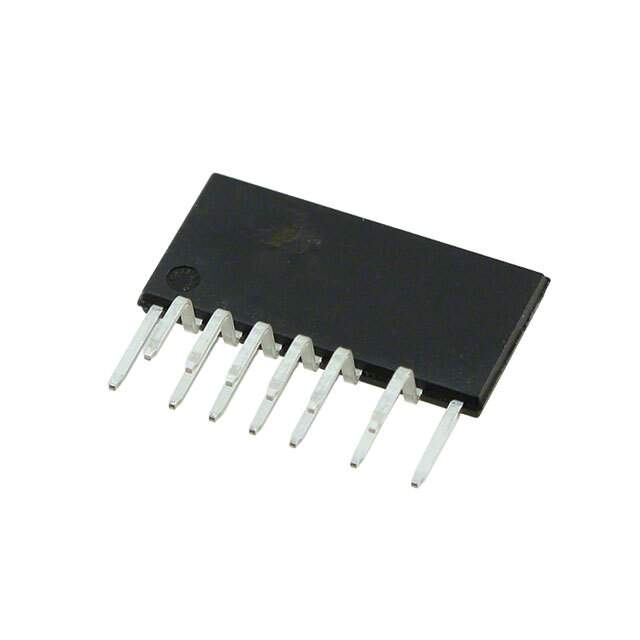

LCS700HG

Name: LCS700HG
Brand: Power Integrations
SKU: 467316
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LCS700HG
Manufacturer	Power Integrations
Catalog	PMIC - Full, Half - Bridge Drivers
Description	IC LLC CTRL MFET 110W ESIP16C
Datasheet	LCS700HG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Power Integrations
Packaging	Tube/Rail
Status	Active
Applications	General Purpose
Load Type	Inductive
Technology	Power MOSFET
Rds On (Typ)	1.53 Ohm
Current - Peak Output	5.2A
Supply Voltage - Operating	11.4 V to 15 V
Voltage - Load	11.4 V to 15 V
Temperature Range - Operating	-40°C to 150°C (TJ)
Features	Auto Restart, Slew Rate Controlled
Fault Protection	Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting	Through Hole
Case / Package	16-ESIP
Win Source Part Number	1051972-LCS700HG
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian LCS700HG CAD Model

Description

The LCS700HG is an integrated circuit from Power Integrations that features auto restart and slew rate controlled fault protection for current limiting, over temperature, over voltage, short circuit, and UVLO.

Fault Protection: Auto Restart, Slew Rate Controlled Current Limiting, Over Temperature, Over Voltage, Short Circuit, and UVLO
Voltage Load Range: 11.4V to 15V
Rds On (Typ): 1.53 Ohm
Application: General Purpose
Load Type: Inductive
Peak Output Current: 5.2A
Packaging: 16-ESIP
