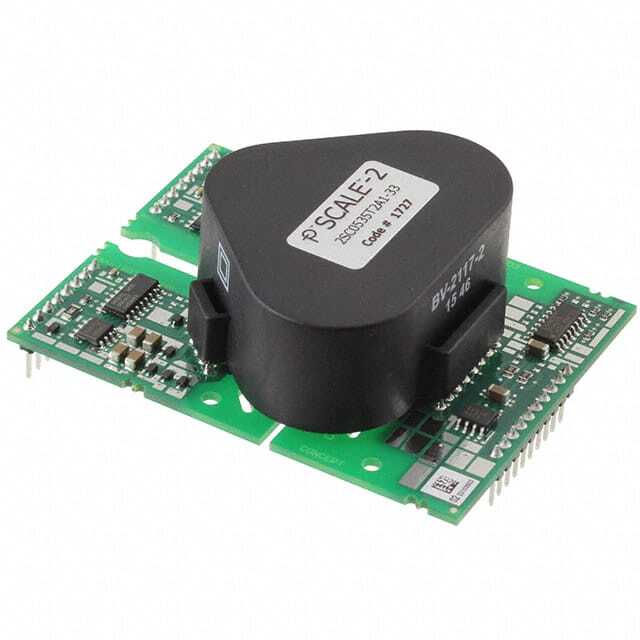

Part No 2SC0535T2A1-33
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HI/LOW SIDE MODULE / High-Side or Low-Side Gate Driver IC Module
Datasheet
2SC0535T2A1-33 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-2
Package Bulk
Product Status Active
Programmable Not Verified
Driven Configuration High-Side or Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type IGBT
Voltage - Supply 14.5V ~ 15.5V
Current - Peak Output (Source, Sink) 35A, 35A
High Side Voltage - Max (Bootstrap) 3300 V
Rise / Fall Time (Typ) 20ns, 25ns
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case Module
Supplier Device Package Module
Base Product Number 2SC0535
Standard Package 12 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 906341-2SC0535T2A1-33
Ultra Librarian 3D Model Ultra Librarian 2SC0535T2A1-33 CAD Model

Description

The 2SC0535T2A1-33 is an active gate driver integrated circuit (IC) from Power Integrations.

  • Category: Integrated circuits (ICs) - power management (PMIC) - gate drivers
  • Series: SCALE™-2
  • Channel Configuration: Independent channel configurations with high-side or low-side driven configurations
  • Drivers: Two drivers
  • Gate Types: IGBT gate types
  • Peak Output Current (Source/Sink): 35A
  • Voltage Supply: 14.5V to 15.5V
  • High-Side Voltage: 3300V (bootstrap)
  • Package: Bulk
  • Standard Package: 12 pieces
  • MSL Level: 1
  • HTSUS Code: 8473.30.1180
