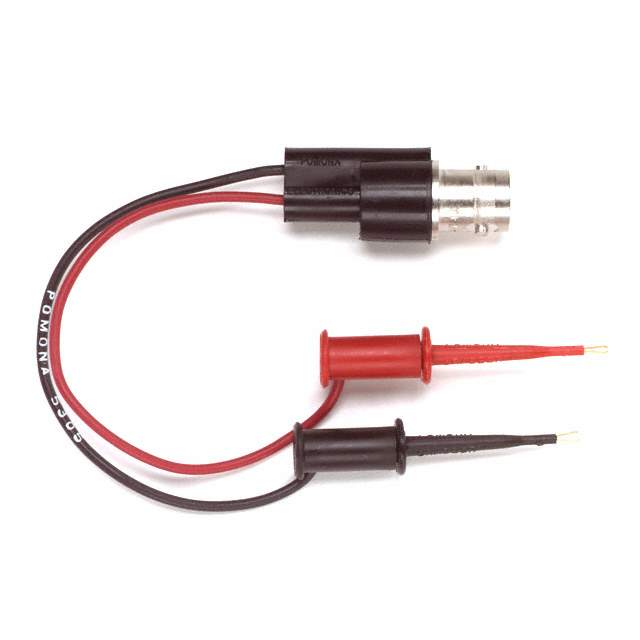

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement>BNC Interface
Mfr Pomona Electronics
Series SMD Grabber® 5305
Package Bulk
Configuration BNC to Grabber, Hook
1st Connector BNC, Female Socket (Jack)
2nd Connector SMD Pincer (2)
Cable Length 5.5" (139.70mm)
Wire Gauge 22 AWG
Cable Type -
Voltage - Rated 150VAC
Temperature Range 131°F (55°C)
Material - Insulation Poly-Vinyl Chloride (PVC)
Color Black and Red
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.20.0000
Standard Package 5 pcs
Win Source Part Number 1380915-5305
Ultra Librarian 3D Model Ultra Librarian 5305 CAD Model

Description

The SMD Grabber® 5305 is a versatile BNC interface used in test and measurement applications. It features a BNC to grabber, hook configuration, allowing for easy connection and testing. The cable length is 5.5" (139.70mm), and the wire gauge is 22 AWG. The insulation material is made of poly-vinyl chloride (PVC), ensuring durability and reliable performance. The voltage rating is 150VAC, making it suitable for a wide range of applications. The connector is color-coded in black and red, providing easy identification. Manufactured by Pomona Electronics, a trusted brand in the industry, this BNC interface is a reliable choice for test and measurement needs.

  • Interface: BNC
  • Configuration: BNC to Grabber, Hook
  • Cable Length: 5.5" (139.70mm)
  • Wire Gauge: 22 AWG
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Voltage Rating: 150VAC
  • Color: Black, Red
  • Manufacturer: Pomona Electronics
