Same model may have multiple batches, images only for reference.

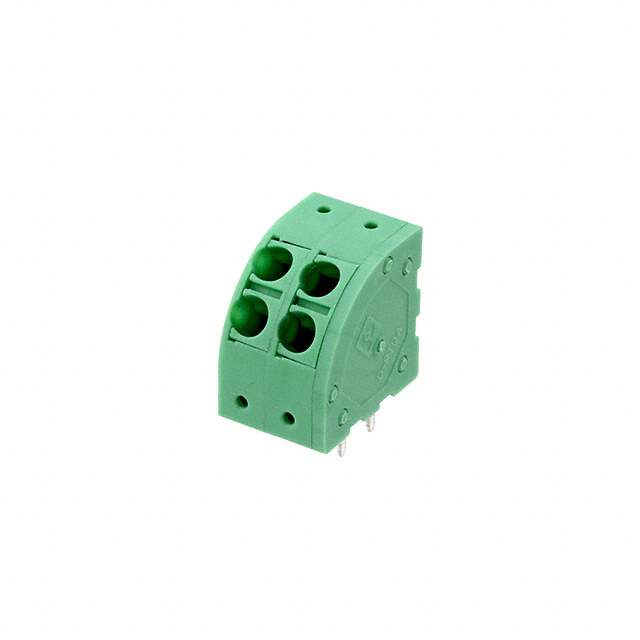

1725302 Real Image
Same model may have multiple batches, images only for reference.

1725302

Part No 1725302
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Terminal Block Connector, PCB, Fixed, Spring Cage, 2, 5 mm, PTDA 2.5, 24 A, 400 V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CB, UL, VDE
Color Green
Contact Material Copper
Contact Plating Tin
Current 15 A
Current Rating 24 A
Depth 16 mm
Height 16 mm
Housing Color Green
Housing Material Polyamide
Length 11.4 mm
Max Current Rating 10 A
Max Supply Voltage 300 V
Mount Through Hole
Number of Contacts 2
Number of Levels 1
Number of Pins 2
Number of Positions 2
Number of Positions Per Level 2
Number of Rows 1
Pitch 5 mm
RoHS Compliant
Stripping Length 10 mm
Termination Screwless
Voltage 300 V
Voltage Rating 320 V
Voltage Rating (AC) 320 V
Weight 3.649009 g
Width 19.5 mm
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 14 AWG
Win Source Part Number 1116593-1725302
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1725302 CAD Model

Description

The Phoenix Contact 1725302 is a terminal block with a screwless termination style and a green color.

  • Termination Style: Screwless
  • Color: Green
  • Positions: 2
  • Levels: 1
  • Pitch: 5mm
  • Current Rating: 15A
  • Voltage Rating: 320V
  • Housing Material: Polyamide
  • Contact Material: Copper
  • Rated Voltage: 300V
  • Contact Plating: Tin
  • Standard Package: 1
  • RoHS Compliant: Yes
  • Approvals: CB, UL, and VDE
  • Wire Gauge Range: 14 to 24 AWG
