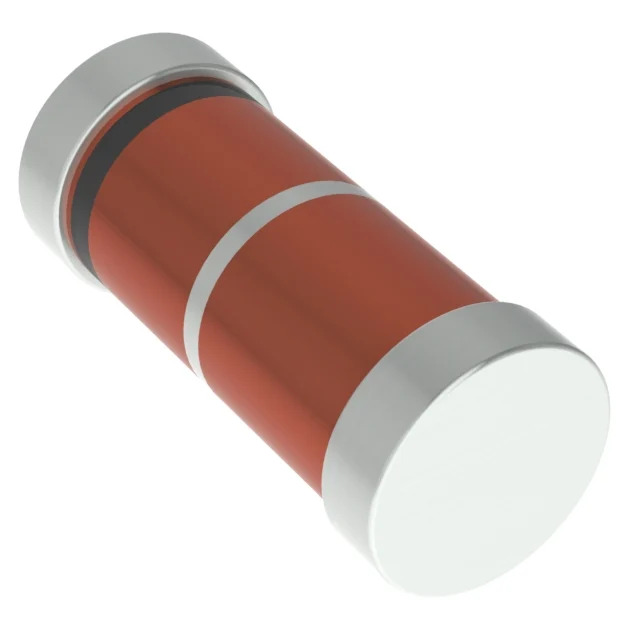

Same model may have multiple batches, images only for reference.
JAN1N5819UR-1 Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

JAN1N5819UR-1

Part No JAN1N5819UR-1
Manufacturer Microchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 1A DO213AB
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 490 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 45 V
Capacitance @ Vr, F 70pF @ 5V, 1MHz
Grade Military
Qualification MIL-PRF-19500/586
Mounting Type Surface Mount
Case / Package DO-213AB, MELF (Glass)
Supplier Device Package DO-213AB (MELF, LL41)
Operating Temperature - Junction -65°C ~ 125°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1492415-JAN1N5819UR-1
Ultra Librarian 3D Model Ultra Librarian JAN1N5819UR-1 CAD Model
