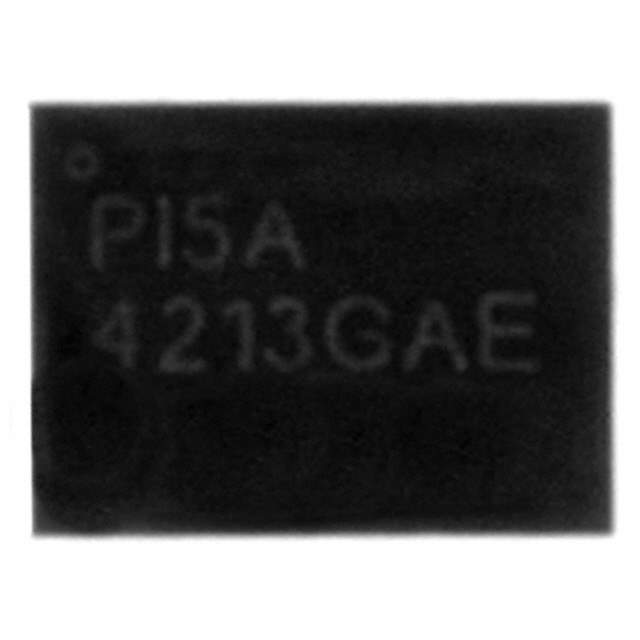

The PI5A4213GAE is a low on-resistance, single-pole, double-throw (SPDT) analog switch manufactured by Pericom (now Diodes Incorporated). It is designed for high-performance switching of analog and digital signals in various applications. The device features low insertion loss, high isolation, and fast switching speeds, making it suitable for signal routing and multiplexing.

Applications:

• Audio Signal Routing
• Video Signal Switching
• USB Signal Switching
• Analog Multiplexing
• Battery Switching

Features:

• Low On-Resistance
• Low Insertion Loss
• High Isolation
• Fast Switching Speed
• Wide Operating Voltage Range

Benefits:

• Minimal signal degradation and distortion
• Efficient signal transmission with minimal power loss
• Prevents signal interference between channels
• Enables high-speed data transfer and switching
• Flexible and versatile for various application needs

Additional Details:

The PI5A4213GAE features a typical on-resistance (RDS(on)) of less than 1 ohm, which minimizes signal attenuation. The insertion loss is very low, ensuring that signals pass through the switch with minimal power loss. The high isolation between the channels prevents unwanted signal crosstalk, preserving signal integrity. The fast switching speeds allow for high-speed data transfer and rapid signal routing. The device operates over a wide voltage range, making it compatible with various logic levels and power supplies.

This analog switch is commonly used for audio signal routing in audio equipment, allowing for seamless switching between different audio sources. It is also suitable for video signal switching in video displays and multimedia devices. In USB applications, the PI5A4213GAE can be used to switch between different USB ports or devices. It can also serve as an analog multiplexer, selecting one of multiple analog inputs for processing. Furthermore, it can be used for battery switching in portable devices, allowing for seamless transition between different power sources.
