ON Semiconductor 1N6295A Transient Voltage Suppressor Diode

The ON Semiconductor 1N6295A is a robust transient voltage suppressor (TVS) diode designed to protect sensitive electronics from voltage spikes and transients induced by lightning and other sudden voltage events. This component is a critical asset in safeguarding circuits by clamping high-energy transients to a safe level before they can damage sensitive ICs or other electronic components.

Key Features

• Peak Pulse Power: The 1N6295A offers a peak pulse power dissipation of 1500 Watts at 10/1000μs waveform, ensuring effective protection against high energy transients.
• Stand-off Voltage: It has a stand-off voltage rating of 13.6 Volts, which provides a margin of safety for applications where voltage spikes can occur.
• Breakdown Voltage: The breakdown voltage range is from 15.2 Volts to 16.8 Volts, allowing for precise operation under surge conditions.
• Clamping Voltage: With a maximum clamping voltage of 22.5 Volts, the 1N6295A ensures that the voltage seen by the protected components does not exceed a safe threshold.
• Low Leakage Current: The low leakage current of under 1 μA at stand-off voltage minimizes power loss when the device is in standby mode.
• Fast Response Time: Its fast response time is essential for quick clamping of transient voltages, thereby providing immediate protection.

Applications

The 1N6295A is suitable for a wide range of applications, including:

• Industrial systems
• Telecommunication devices
• Power supply protection
• Automotive electronics
• Consumer electronic devices

Reliability and Compliance

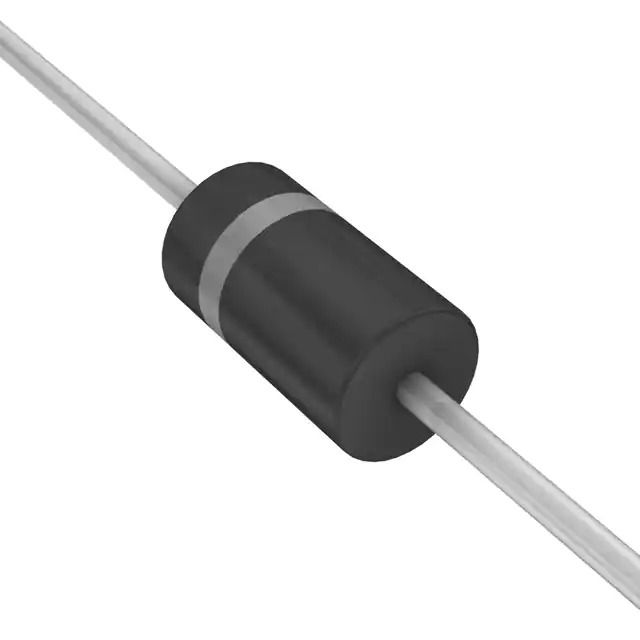

ON Semiconductor's commitment to quality ensures that the 1N6295A meets rigorous industry standards for reliability and performance. It is compliant with the RoHS directive, denoting that it is free from hazardous substances. The axial-lead package allows for easy integration into a variety of circuit designs, providing designers with flexibility and reliability in their surge protection strategies.

By incorporating the 1N6295A into your design, you can enhance the durability and longevity of your electronic products against the unpredictable nature of transient voltage events.
