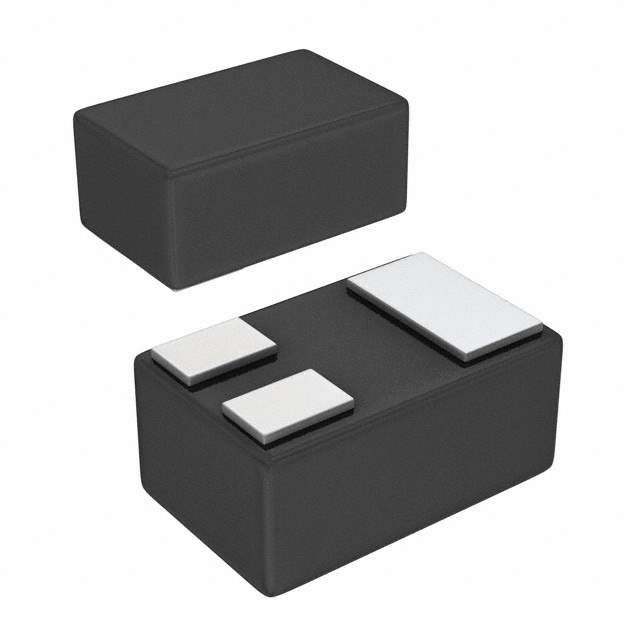

PJQ1902_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

PJQ1902_R1_00001

Part No PJQ1902_R1_00001
Manufacturer Panjit
Catalog Transistors - FETs, MOSFETs - RF
Description 30V N-CHANNEL ENHANCEMENT MODE M / N-Channel 30 V 500mA (Ta) 700mW (Ta) Surface Mount 3-DFN (0.6x1)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Panjit International Inc.
Package Tape & Reel
Product Status Not For New Designs
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Rds On (Max) @ Id, Vgs 1.2Ohm @ 350mA, 4.5V
Vgs(th) (Max) @ Id 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 0.87 nC @ 4.5 V
Vgs (Max) ±10V
Input Capacitance (Ciss) (Max) @ Vds 34 pF @ 15 V
Power Dissipation (Max) 700mW (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 3-DFN (0.6x1)
Package / Case 3-UFDFN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0095
Other Names 3757-PJQ1902_R1_00001DKR,3757-PJQ1902_R1_00001TR,3757-PJQ1902_R1_00001CT
Standard Package 8,000
Win Source Part Number 1085300-PJQ1902_R1_00001
Ultra Librarian 3D Model Ultra Librarian PJQ1902_R1_00001 CAD Model

Description

The Panjit PJQ1902 is an N-channel MOSFET transistor designed for use in a variety of applications.

  • Maximum Drain to Source Voltage Rating: 30 V
  • Continuous Drain Current Rating: 500 mA @ 25°C
  • Maximum On-Resistance: 1.2 Ohm @ 350 mA
  • Gate Charge: 0.87 nC @ 4.5 V
  • Package: 3-UFDFN
  • Temperature Range: -55°C to 150°C
  • ECCN: EAR99
  • Package Type: Tape and Reel
  • Standard Package: 8,000 units
