Same model may have multiple batches, images only for reference.

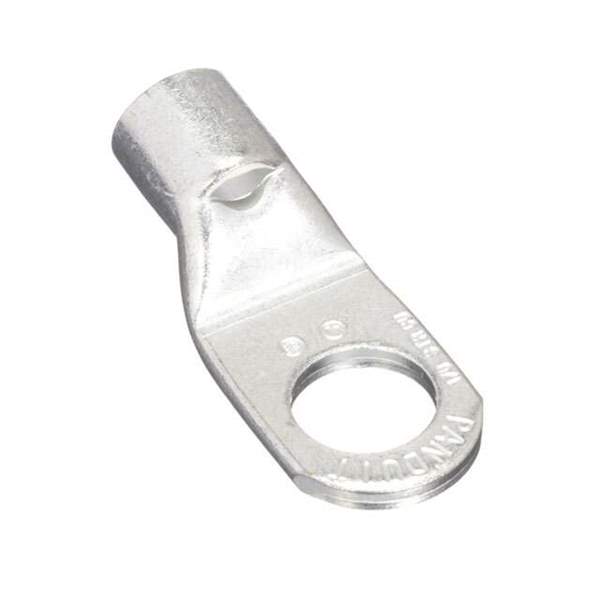

S2-38R-X Real Image
Same model may have multiple batches, images only for reference.

S2-38R-X

Part No S2-38R-X
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S2-38R-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 3/8 Stud
Thickness 0.110" (2.79mm)
Width - Outer Edges 0.700" (17.78mm)
Length - Overall 1.700" (43.18mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 1-2 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S2-38
Other Names 298-15776,S2-38R-X
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285165-S2-38R-X
Ultra Librarian 3D Model Ultra Librarian S2-38R-X CAD Model

Description

The Panduit Corp S2-38R-X is a ring connector terminal that can accommodate wire gauges of 1-2 AWG.

  • Wire Gauge: 1-2 AWG
  • Thickness: 0.110" (2.79mm)
  • Width: 0.700" (17.78mm)
  • Length: 1.700" (43.18mm)
  • Insulation: Non-Insulated
  • Stud/Tab Size: 3/8 stud
  • Mounting: Free hanging (in-line)
  • Packaging: Bulk
  • ECCN: EAR99 compliant
  • MSL Level: Not applicable
  • Material: Copper
  • Contact Finish: Tin
