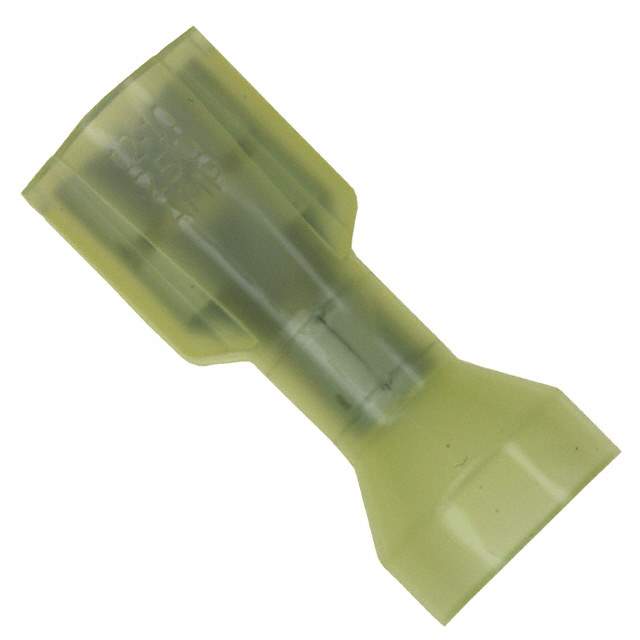

4-520447-2 Real Image
Same model may have multiple batches, images only for reference.

4-520447-2

Part No 4-520447-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 10-12AWG 0.250
Datasheet
4-520447-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.935" (23.75mm)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Yellow
Contact Finish Tin
Insulation Diameter 0.320" (8.13mm)
Win Source Part Number 1005583-4-520447-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4-520447-2 CAD Model

Description

The TE Connectivity AMP Connectors 1005583-4-520447-2 is a yellow-colored female connector that is suitable for use with 10-12 AWG wire gauges.

  • Color: Yellow
  • Gender: Female
  • Wire Gauge: 10-12 AWG
  • Termination: Crimp
  • Contact Finish: Tin
  • Insulation: Fully Insulated
  • Terminal Type: Standard
  • Overall Length: 0.935 inches (23.75mm)
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Insulation Diameter: 0.320 inches (8.13mm)
  • Mounting Style: Free-Hanging (In-Line)
  • Application: Connectors and Interconnects
