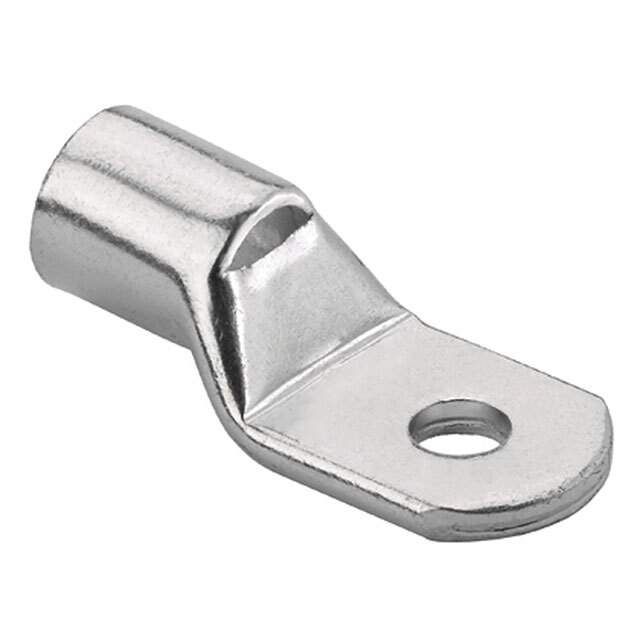

LCMA6-6-C Real Image
Same model may have multiple batches, images only for reference.

LCMA6-6-C

Part No LCMA6-6-C
Manufacturer Panduit Corp
Catalog Terminals
Description CONN TERM RECT RING 4-6MM #M6 / Ring Terminal Connector M6 Stud Flat Sided, Tubular (Battery Lugs) 4.0 ~ 6.0mm² Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Lug®
Package Bulk
Terminal Type Flat Sided, Tubular (Battery Lugs)
Stud/Tab Size M6 Stud
Thickness 0.046" (1.17mm)
Width - Outer Edges 0.425" (10.80mm)
Length - Overall 1.083" (27.51mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 4.0 ~ 6.0mm²
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number LCMA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 298-19923,07498376787,LCMA6-6-C-ND
Standard Package 1
Win Source Part Number 1074690-LCMA6-6-C
Ultra Librarian 3D Model Ultra Librarian LCMA6-6-C CAD Model

Description

The Pan-Lug® LCMA6-6-C is a crimp ring connector designed for use with wires of 4.0 ~ 6.0mm² gauge.

  • Terminal Type: flat-sided, tubular
  • Stud/Tab Size: M6
  • Material: copper with a tin finish
  • Insulation Type: non-insulated
  • Thickness: 0.046" (1.17mm)
  • Width: 0.425" (10.80mm)
  • Overall Length: 1.083" (27.51mm)
  • Mounting: free hanging (in-line)
  • Packaging: bulk
  • Alternative Parts (cross-reference): 12-610-W, 13-610-W, 11-610-W, LCMA16-6-C, LCMA10-6-C, and LCMA6-5-C
  • REACH: not affected by REACH
  • ECCN: EAR99
