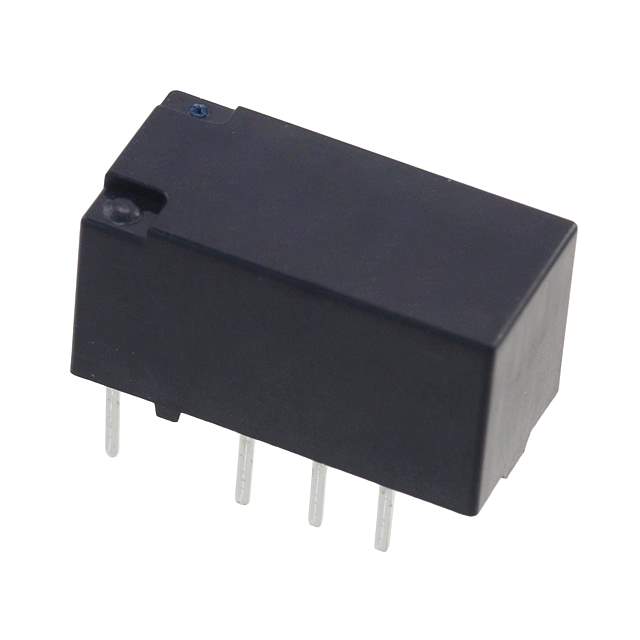

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 4ms
Release Time 4ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 053244-TXD2-12V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 40
Ultra Librarian 3D Model Ultra Librarian TXD2-12V CAD Model

Description

The Panasonic Electric Works relay with the Win Source Part Number 053244-TXD2-12V is a reliable choice for electronic devices that require high switching capacity.

  • Popularity: This relay has a medium popularity rate and a limited supply and demand status.
  • Contact Form: It is a DPDT (2 Form C) contact form relay designed to offer low coil resistance and high current handling capacity.
  • Category: It belongs to the category of relays and is an excellent choice for applications that require high switching capacity.
