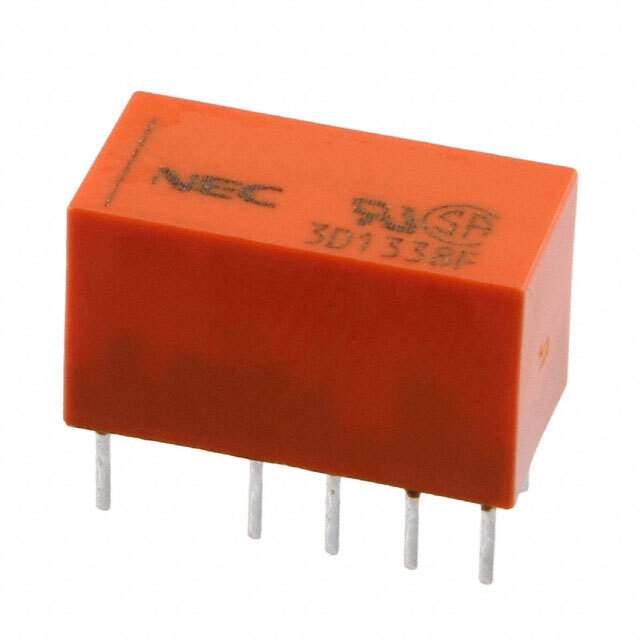

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr KEMET
Series EC2
Package Tube
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 46.7 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Must Operate Voltage 2.25 VDC
Operate Time 2 ms
Release Time 1 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Gold Alloy
Relay Type General Purpose
Coil Resistance 64.3 Ohms
Standard Package 35
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1345294-EC2-3TNU
Ultra Librarian 3D Model Ultra Librarian EC2-3TNU CAD Model

Description

The Kemet 1345294-EC2-3TNU is a general-purpose signal relay with a DPDT (2 Form C) contact form.

  • Coil Voltage: 3VDC
  • Coil Resistance: 64.3 Ohms
  • Coil Current: 46.7 mA
  • Contact Rating: 2 A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Operate Time: 2 ms
  • Release Time: 1 ms
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C ~ 85°C
