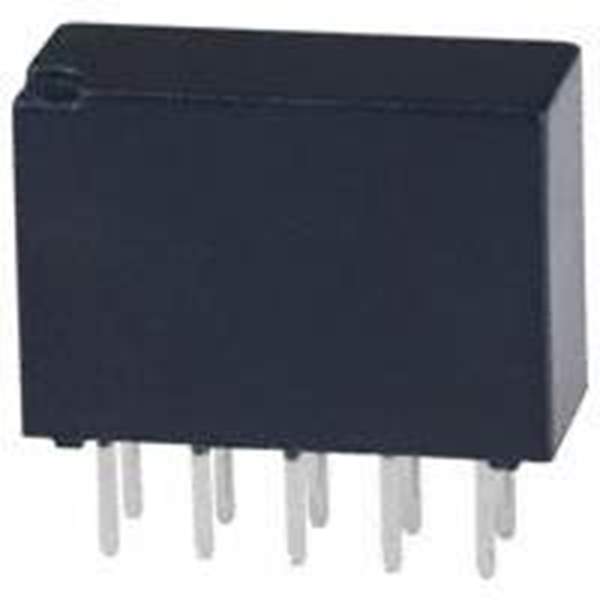

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Status Obsolete
Mounting Style Through Hole
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Coil Current 46.7mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 2.25 VDC
Must Release Voltage 0.3 VDC
Operate Time 3ms
Release Time 3ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 64.3 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1271471-TN2-3V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TN2-3V CAD Model

Description

The TN2-3V from Panasonic Electric Works is a DPDT (2 Form C) relay that operates on a coil voltage of 3VDC.

  • Contact Rating: 1A
  • Switching Voltage: 125VAC and 110VDC
  • Release Time & Operate Time: 3ms
  • Package: Sealed fully
  • Mounting Style: Through-hole
  • Terminations: PC pin
  • Applications: Suitable for use in various applications like communication equipment, office equipment, and measurement equipment
