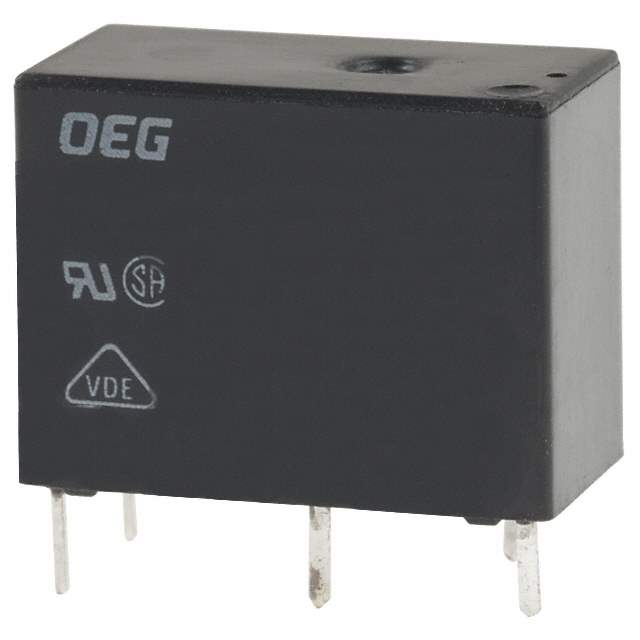

9-1440003-3 Real Image
Same model may have multiple batches, images only for reference.

9-1440003-3

Part No 9-1440003-3
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description General Purpose Relay, G5Sb Series, Power, Non Latching, Spdt, 12 Vdc, 5 A Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Coil Current 33.3 mA
Coil Power 400 mW
Coil Resistance 360 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 5 A
Contact Material Silver, Tin
Contact Voltage Rating (AC) 277 V
Current Rating 5 A
Depth 10 mm
ELV Compliant
Height 15.1892 mm
Lead Free Yes
Length 19.8 mm
Max Current Rating 10 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 277 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 1
Number of Pins 5
Operate Time 10 ms
Power Rating 400 mW
Radiation Hardening No
REACH SVHC Unknown
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Termination PC Pin, PCB
Throw Configuration SPDT
Voltage Rating (AC) 277 V
Voltage Rating (DC) 30 V
Weight 7 g
Width 10 mm
Win Source Part Number 1084356-9-1440003-3
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 9-1440003-3 CAD Model

Description

The TE Connectivity General Purpose Relay is a non-latching type relay with a coil resistance of 360 Ω and a coil current of 33.3 mA.

  • Maximum Operating Temperature: 70 °C
  • Minimum Operating Temperature: -40 °C
  • Contact Material: Silver and Tin
  • Contact Current Rating: 5 A
  • Power Rating: 400 mW
  • Maximum Voltage Rating: 277 V AC and 30 V DC
  • Throw Configuration: SPDT
  • Coil Voltage: 12 V DC
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Relay Type: Signal Relay
  • Current Rating: Up to 2 amps
