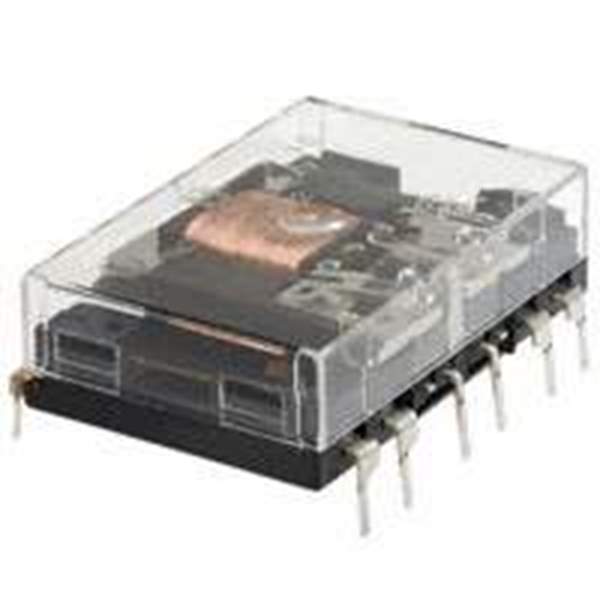

NC4D-JP-DC24V Real Image
Same model may have multiple batches, images only for reference.

NC4D-JP-DC24V

Part No NC4D-JP-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 24V
Datasheet
NC4D-JP-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 10ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 720 mW
Coil Resistance 800 Ohms
Temperature Range - Operating -40°C to 55°C
Win Source Part Number 059837-NC4D-JP-DC24V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NC4D-JP-DC24V CAD Model

Description

The NC4D-JP-DC24V relay from Panasonic Electric Works is a high-quality component that offers a contact rating of 5A and a switching voltage of 250VAC.

  • Contact Rating: 5A
  • Switching Voltage: 250VAC
  • Contact Form: 4PDT
  • Applications: Industrial automation, medical equipment, and home appliances
  • Coil Voltage: 24VDC
  • Coil Resistance: 800 ohms
  • Packaging: Tube/rail
  • Mounting Style: Through-hole
