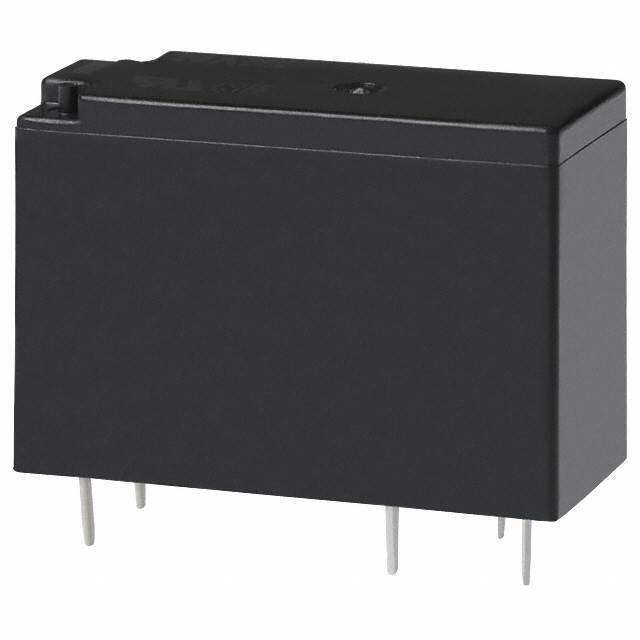

JW2SN-B-DC24V Real Image
Same model may have multiple batches, images only for reference.

JW2SN-B-DC24V

Part No JW2SN-B-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 22mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class B, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 1.1 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 070324-JW2SN-B-DC24V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JW2SN-B-DC24V CAD Model

Description

The JW2SN-B-DC24V is a DPDT (2 Form C) general-purpose relay manufactured by Panasonic Electric Works.

  • Mounting Type: Through Hole
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.1 kOhms
  • Coil Current: 22mA
  • Operate Time: 15ms
  • Release Time: 5ms
  • Contact Rating (Current): 5A
  • Switching Voltage: 250VAC and 30VDC (max)
  • Turn On Voltage (Max): 16.8 VDC
  • Turn Off Voltage (Min): 2.4 VDC
  • Sealed: Fully
  • Insulation Class: B
  • Supply and Demand Status: Limited
  • Quantity per Package: 100
