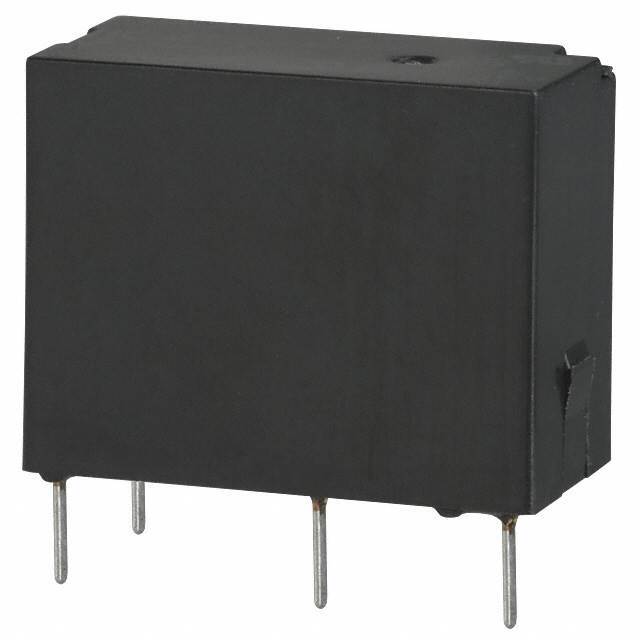

JQ1-18V-F Panasonic
Same model may have multiple batches, images only for reference.

JQ1-18V-F

Part No JQ1-18V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 5A 18V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JQ
Package Box
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 18VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 110VDC - Max
Coil Current 22.2 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class E
Must Operate Voltage 13.5 VDC
Must Release Voltage 0.9 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 810 Ohms
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 810060-JQ1-18V-F
Ultra Librarian 3D Model Ultra Librarian JQ1-18V-F CAD Model

Description

The Panasonic JQ1-18V-F is a single pole double throw (SPDT) power relay designed for general-purpose applications. It features a coil voltage of 18VDC and a coil resistance of 810 Ohms, with a coil current of 22.2 mA. The Panasonic relay is through-hole mountable and has a PC pin termination style.

  • Coil Voltage: 18VDC
  • Coil Resistance: 810 Ohms
  • Coil Current: 22.2 mA
  • Contact Rating: 5 A
  • Switching Voltage: 250VAC or 110VDC
  • Operating Temperature Range: -40°C to 70°C
  • Release Time: 10 ms
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Contact Material: Silver Tin Oxide
