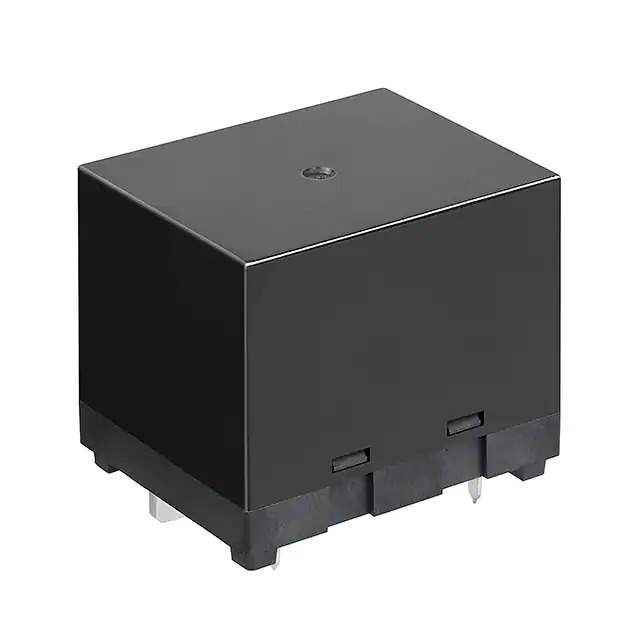

HE1AN-W-DC12V-Y7 Real Image
Same model may have multiple batches, images only for reference.

HE1AN-W-DC12V-Y7

Part No HE1AN-W-DC12V-Y7
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 120A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series HE-N
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 120 A
Switching Voltage 800VAC, 260VDC - Max
Coil Current 208 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 57.6 Ohms
Base Product Number HE1AN
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 853008-HE1AN-W-DC12V-Y7
Ultra Librarian 3D Model Ultra Librarian HE1AN-W-DC12V-Y7 CAD Model

Description

The HE1AN-W-DC12V-Y7 is a power relay with a SPST-NO (1 Form A) contact form.

  • Contact Material: Silver Nickel (AgNi)
  • Contact Rating: 120 A AC/DC
  • Maximum Switching Voltage: 800VAC / 260VDC
  • Coil Voltage: 12VDC
  • Coil Resistance: 57.6 Ohms
  • Operate Time: 30 ms
  • Release Time: 10 ms
  • Relay Type: General Purpose
  • Seal: Sealed (Flux Protection)
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 55°C
  • Product Status: Active
  • ECCN: EAR99
