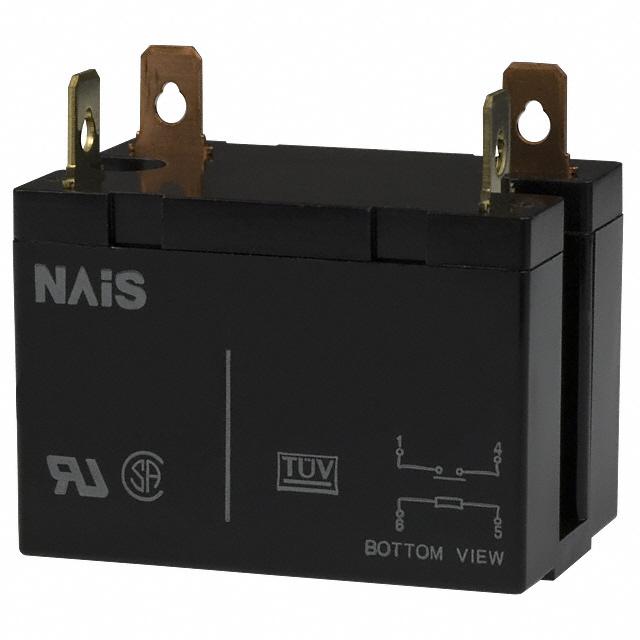

HE1aN-DC12V Panasonic
Same model may have multiple batches, images only for reference.

HE1aN-DC12V

Part No HE1aN-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 12V
Datasheet
HE1aN-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 160mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 30ms
Release Time 10ms
Mounting Chassis Mount
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Coil Power 1.92 W
Coil Resistance 75 Ohms
Temperature Range - Operating -50°C to 55°C
Win Source Part Number 204730-HE1aN-DC12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HE1aN-DC12V CAD Model

Description

The HE1aN-DC12V is a general-purpose relay from Panasonic Electric Works that is suitable for various applications, including home appliances, industrial equipment, and automotive electronics. This SPST-NO relay has a coil voltage of 12VDC, a coil resistance of 75 Ohms, and a coil current of 160mA. It can handle a contact rating of 30A and a switching voltage of 277VAC and 30VDC. The HE1aN-DC12V has an operate time of 30ms and a release time of 10ms. It is packaged in a bulk package and has a temperature range of -50°C to 55°C.
