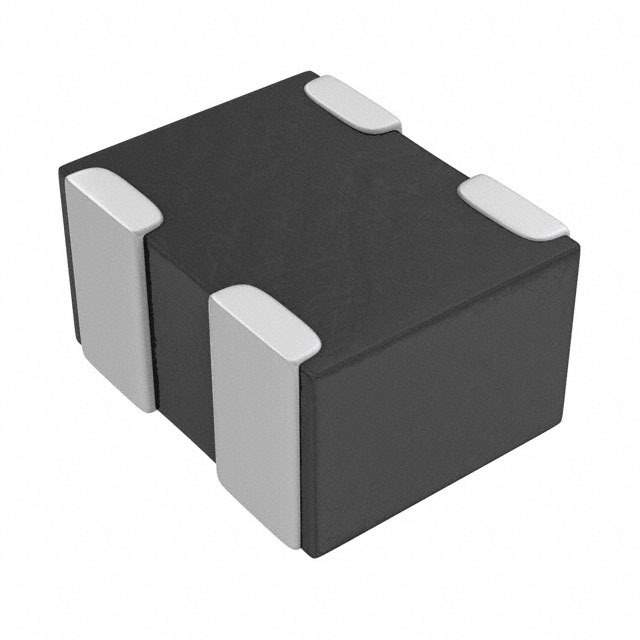

EXC-14CG120U Real Image
Same model may have multiple batches, images only for reference.

EXC-14CG120U

Part No EXC-14CG120U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 130MA 2LN 12 OHM SMD
Datasheet
EXC-14CG120U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 12 Ohm @ 100MHz
Current Rating (Max) 130mA
DC Resistance (DCR) (Max) 2 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.020" (0.50mm)
Dimension 0302 (0805 Metric)
Win Source Part Number 1037284-EXC-14CG120U
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EXC-14CG120U CAD Model

Description

The Panasonic Electronic Components 1037284-EXC-14CG120U is a signal line filter with a DC voltage rating of 5V and a maximum current rating of 130mA.

  • Manufacturer: Panasonic Electronic Components
  • Product Name: 1037284-EXC-14CG120U
  • DC Voltage Rating: 5V
  • Maximum Current Rating: 130mA
  • Supply and Demand Status: sufficient
  • Impedance: 12 Ohm @ 100MHz
