Same model may have multiple batches, images only for reference.

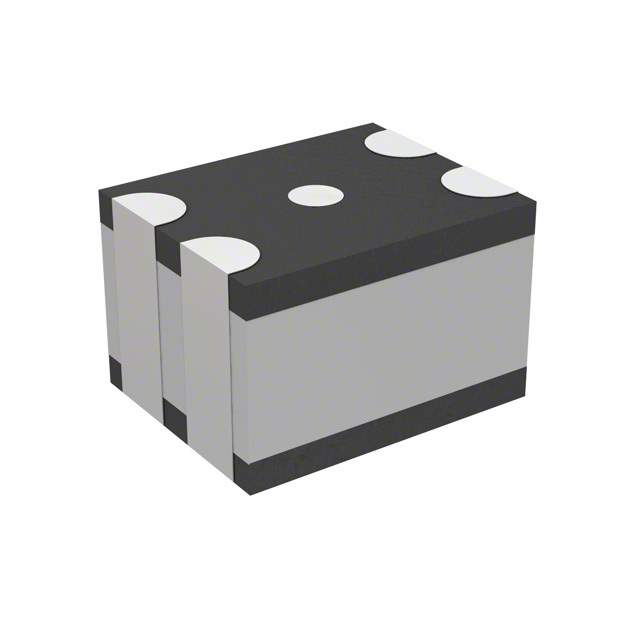

RGCMF1210900H3T Real Image
Same model may have multiple batches, images only for reference.

RGCMF1210900H3T

Part No RGCMF1210900H3T
Manufacturer Walsin Technology Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 90 OHM SMD  /  2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 300mA DCR 1Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Walsin Technology Corporation
Series RGCMF
Package Tape & Reel
Product Status Obsolete
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 1Ohm
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max) 0.035" (0.90mm)
Package / Case 0504 (1210 Metric), 4 Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 1292-1042-6,1292-1042-1,1292-1042-2
Standard Package 2,000
Win Source Part Number 990188-RGCMF1210900H3T
Ultra Librarian 3D Model Ultra Librarian RGCMF1210900H3T CAD Model

Description

The RGCMF1210900H3T is a common mode choke manufactured by Walsin Technology Corporation.

  • Product Name: RGCMF1210900H3T
  • Package: 2,000
  • Application: signal line
  • Voltage Rating: AC and DC
  • Current Rating: 300mA
  • Impedance: 90 Ohms @ 100 MHz
  • DC Resistance: 1 Ohm
  • Mounting: surface mount device
  • Height: 0.035" (0.90mm)
  • Dimension: 0.049" L x 0.039" W (1.25mm x 1.00mm)
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
